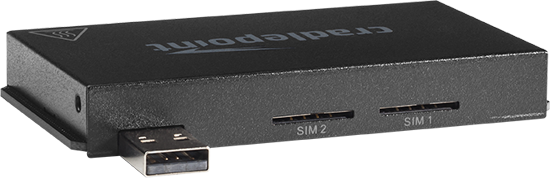

Cradlepoint MC400 Integrated 4G LTE Modem
Dual Modem Technology for More Bandwidth and Higher Availability

Cradlepoint MC400 Integrated 4G LTE Modem

Cradlepoint Products
MC400 Series
MC400 Cat 4 LTE modem (for AER series, ARC CBA850, and COR series products with dock)
#MC400LP4
Our Price: $280.00

Click here to jump to more pricing!

Overview:

The MC400 Integrated 3G/4G/LTE Modem fuses enterprise reliability with unparalleled agility for networking at the edge. Adding a second MC400 modem provides enterprises greater bandwidth for additional users and today’s demanding applications. In addition, more and more enterprises are demanding the ability to support diverse LTE carriers within a single router for high availability requirements.

By adding dual modem technology, enterprises have the ability to:

  • Load balance and add burst bandwidth for peak periods
  • Deploy multiple wireless backup connections to help acquire 99.999% uptime
  • Diversify WAN paths for increased redundancy
  • “Cut the wire” for combined high-speed 4G LTE networks from diverse carriers

Each modem includes two SIM slots for even more data plan diversity options. The Cradlepoint MC400 is available in the following versions:

  • Verizon
  • AT&T
  • Sprint
  • Generic (additional carriers in the U.S. & Canada)
  • Europe

Each modem includes two 2FF SIM slots for even more data plan diversity options and is available in the following versions:

  • MC400LP6 Cat 6 LTE Advanced (300/50 Mbps) with SIM-based auto-carrier selection for all carriers in North America and Europe
  • MC400LP5 Cat 6 LTE Advanced (300/50 Mbps) with SIM-based auto-carrier selection for Asia Pacific and Saudi Arabia carriers
  • MC400LP4 Cat 4 LTE (150/50 Mbps) with SIM-based auto-carrier selection for Verizon, AT&T, T-Mobile, and Canada
  • MC400LPE Cat 3 LTE (100/50 Mbps) with a software-defined radio with SKUs for Verizon, AT&T, Sprint, and Generic (additional carriers in the U.S. and Canada)
  • MC400LP3 Cat 3 LTE (100/50 Mbps) for Europe

Supported Products

The MC400 is available with the following products:

  • AER3100 Series
  • AER2100 Series
  • AER1600 Series
  • COR IBR1100 Series with Dual-Modem Dock
  • COR IBR600B Series with COR Extensibility Dock
  • COR IBR600C Series with COR Extensibility Dock
  • ARC CBA850*
  • ARC CBA750B*
  • ARC MBR1400*

*ARC products support a single modem (dual embedded modem only supported on the AER Series. See below.).

Features and Benefits:

Features

  • Dual SIMs available on most SKUs
  • Dual-modem capability on router models that support a 2nd modem
  • Active GPS available on LPE, LP3, and LP6 models
  • Category 3, 4, and 6 LTE models available for North America, Europe, Middle East, Africa, Asia Pacific, Saudi Arabia, and public safety

Benefits

  • Higher availability: cut-the-wire networking solution with 4G LTE for primary and failover connectivity
  • Ultimate WAN Diversity: Combine 4G LTE with dual-modem, dual-SIM, and multi-carrier functionality; Ethernet; and/or WiFi as WAN
  • Future-proof your network: Single versatile hardware platform supports several carriers
  • Flexibility: Switch SIM cards when you’ve reached your data plan cap

Specifications:


MC400LP6

  • Technology: LTE Advanced, HSPA+
  • Downlink Rates: LTE 300 Mbps, HSPA+ 42.2 Mbps
  • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps
  • Frequency Bands:
    • LTE Bands 1-5, 7, 8, 12, 13, 17, 20, 25, 26, 29, 30, 41
      • Verizon: 2, 4, 5, 13 (XLTE support w/carrier aggregation)
      • AT&T: 2, 4, 5, 12/17, 29, 30
      • Sprint: 25, 26, 41 (LTE Plus Support)
      • T-Mobile: 2, 4, 12 (T-Mobile Wideband LTE Support)
      • Generic: all
  • Carrier Aggregation:
    • 1+ 8
    • 2+ 2/5/12 (17 w/MFBI)/13/29
    • 3+ 7/20
    • 4+ 4/5/12 (17 w/MFBI)/13/29
    • 5+ 2/4/30
    • 7+ 3/7/20
    • 8+ 1
    • 12 (17 w/MFBI) + 2/4/30
    • 13+ 2/4
    • 20+ 3/7
    • 30+ 5/12 (17 w/MFBI)
    • 41+ 41
  • Fallback: WCDMA/DC-HSPA+ (42/5.76 Mbps): Bands 1, 2, 3, 4, 5, 8
  • Power: LTE 23 dBm ± 1, HSPA+ 23 dBm ± 1
  • Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf/cm2)
  • GPS: active GPS support
  • SMS: SMS support
  • Industry Standards & Certs: CE, FCC, GCF, IC, PTCRB, AT&T, Sprint, Verizon
  • Modem Part Number: MC400LP6

MC400LP5

  • Technology: FDD/TDD (Category 6) LTE Advanced, DC-HSPA+
  • Downlink Rates: LTE 300 Mbps, HSPA+ 42.2 Mbps
  • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps
  • Frequency Bands:
    • LTE Bands: 1, 3, 5, 7, 8, 11, 18, 19, 21, 28, 38, 39, 40, 41
    • TD-SCDMA 39
  • Carrier Aggregation:
    • 1+ (8, 18, 19, 21)
    • 3+ (5, 7, 19, 28)
    • 7+ (5, 7, 28)
    • 19+ 21
    • 38+ 38
    • 39+ 39
    • 40+ 40
    • 41+ 41
  • Fallback: WCDMA/DC-HSPA+ (42/5.76 Mbps): Bands 1, 5, 6, 8, 9, 19
  • Power: LTE 23 dBm ± 1, HSPA+ 23 dBm ± 1
  • Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf/cm2)
  • GPS: active GPS support
  • SMS: SMS support
  • Industry Standards & Certs: CE, GCF-CC, RC Australia, others pending
  • Modem Part Number: MC400LP5

MC400LP4

  • Technology: Category 4 LTE, DC-HSPA+
  • Downlink Rates: LTE 150 Mbps, DC-HSPA+ 42.2 Mbps
  • Uplink Rates: LTE 50 Mbps, DC-HSPA+ 5.76 Mbps
  • Frequency Bands:
    • LTE: Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz)
    • DC-HSPA+/UMTS Rel. 9, Cat 24: Bands 5 and 2 (850/1900 MHz)
  • Power: LTE 23 dBm ± 1, DC-HSPA+ 23 dBm ± 1
  • Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf/cm2)
  • Industry Standards & Certs: FCC, WiFi Alliance, Verizon, AT&T, PTCRB, carrier Private Networks, IC
  • SIM: two 2FF slots (secured)

Business-Grade Modem Specifications:

Please note that LPE models are flexible and support bands for multiple cellular providers; however, only the frequency bands in bold below are supported by the listed provider.

MC400LPE-VZ – 4G LTE/HSPA+/EVDO for Verizon

  • Technology: LTE, HSPA+, EVDO Rev A
  • Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
  • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
  • Frequency Bands:
    • LTE Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
    • HSPA+/UMTS (850/900/1900/2100 MHz, AWS)
    • GSM/GPRS/EDGE (850/900/1800/1900 MHz)
    • CDMA EVDO Rev A/1xRTT (800/1900 MHz)
  • Power: LTE 23 dBm ± 1, HSPA+ 23 dBm ± 1, EVDO 24 dBm +0.5/-1 (typical conducted)
  • Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi (Cellular/PCS) gain; finger tighten only (maximum torque spec is 7 kgf/cm2)
  • GPS: active GPS support
  • Industry Standards & Certs: FCC, Verizon
  • Modem Part Number: MC400LPE

MC400LPE-AT – 4G LTE/HSPA+/EVDO for AT&T

  • Technology: LTE, HSPA+, EVDO Rev A
  • Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
  • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
  • Frequency Bands:
    • LTE Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
    • HSPA+/UMTS (850/900/1900/2100 MHz, AWS)
    • GSM/GPRS/EDGE (850/900/1800/1900 MHz)
    • CDMA EVDO Rev A/1xRTT (800/1900 MHz)
  • Power: LTE 23 dBm ± 1, HSPA+ 23 dBm ± 1, EVDO 24 dBm +0.5/-1 (typical conducted)
  • Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi (Cellular/PCS) gain; finger tighten only (maximum torque spec is 7 kgf/cm2)
  • GPS: active GPS support
  • Industry Standards & Certs: PTCRB, FCC, IC, AT&T
  • Modem Part Number: MC400LPE

MC400LPE-SP – 4G LTE/HSPA+/EVDO for Sprint

  • Technology: LTE, HSPA+, EVDO Rev A
  • Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
  • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
  • Frequency Bands:
    • LTE Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
    • HSPA+/UMTS (850/900/1900/2100 MHz, AWS)
    • GSM/GPRS/EDGE (850/900/1800/1900 MHz)
    • CDMA EVDO Rev A/1xRTT (800/1900 MHz)
  • Power: LTE 23 dBm ± 1, HSPA+ 23 dBm ± 1, EVDO 24 dBm +0.5/-1 (typical conducted)
  • Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi (Cellular/PCS) gain; finger tighten only (maximum torque spec is 7 kgf/cm2)
  • GPS: active GPS support
  • Industry Standards & Certs: FCC, Sprint
  • Modem Part Number: MC400LPE

MC400LP3-EU – 4G LTE/HSPA+ for Europe

  • Technology: LTE, HSPA+
  • Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps (theoretical)
  • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps (theoretical)
  • Frequency Bands:
    • LTE Band 1 (2100 MHz), Band 3 (1800 MHz), Band 7 (2600 MHz), Band 8 (900 MHz), Band 20 (800 MHz)
    • HSPA+/UMTS (800/850/900/1900/2100 MHz)
    • GSM/GPRS/EDGE Quad-Band (850/900/1800/1900 MHz)
  • Power: LTE Band 1/3/8/20 – 23 dBm ± 1; LTE Band 7–22 dBm ± 1, HSPA+ 23 dBm ± 1 (typical conducted)
  • Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi (Cellular/PCS) gain; finger tighten only (maximum torque spec is 7 kgf/cm2)
  • GPS: active GPS support
  • Industry Standards & Certs: CE, GCF-CC
  • Modem Part Number: MC400LP3

MC400LPE-GN – 4G LTE/HSPA+/EVDO

(generic – for use on T-Mobile and US Cellular in the U.S. and Rogers, Bell, & TELUS in Canada)

  • Technology: LTE, HSPA+, EVDO Rev A
  • Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
  • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
  • Frequency Bands:
    • LTE Band 2 (1900 MHz), Band 4 (AWS), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
    • HSPA+/UMTS (850/900/1900/2100 MHz, AWS)
    • GSM/GPRS/EDGE (850/900/1800/1900 MHz)
    • CDMA EVDO Rev A/1xRTT (800/1900 MHz)
  • Power: LTE 23 dBm ± 1, HSPA+ 23 dBm ± 1, EVDO 24 dBm +0.5/-1 (typical conducted)
  • Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi (Cellular/PCS) gain; finger tighten only (maximum torque spec is 7 kgf/cm2)
  • GPS: active GPS support
  • Industry Standards & Certs: PTCRB, FCC, IC
  • Modem Part Number: MC400LPE

Documentation:

Download the Cradlepoint MC400 Datasheet (.PDF)

Pricing Note:

Cradlepoint Products
MC400 Series
MC400 Cat 4 LTE modem (for AER series, ARC CBA850, and COR series products with dock)
#MC400LP4
Our Price: $280.00
MC400 LTE Advanced (Cat 6) modem (for AER1600/1650, 2100, AER3100/3150, CBA850, and COR series products with dock)
#MC400LP6
Our Price: $450.00
MC400 Multi-band modem for Verizon (for AER1600/1650, 2100, AER3100/3150, CBA850, and COR series products with dock)
#MC400LPE-VZ
Our Price: $450.00
MC400 Multi-band modem for AT&T (for AER1600/1650, 2100, AER3100/3150, CBA850, and COR series products with dock)
#MC400LPE-AT
Our Price: $450.00
MC400 Multi-band modem for Sprint (for AER1600/1650, 2100, AER3100/3150, CBA850, and COR series products with dock)
#MC400LPE-SP
Our Price: $450.00
MC400 Multi-band modem for Generic (for AER1600/1650, 2100, AER3100/3150, CBA850, and COR series products with dock)
Note: Generic Modem SKUs support Canadian Wireless carriers and T-Mobile in the US
#MC400LPE-GN
Our Price: $450.00
