Cradlepoint IBR900 Series Ruggedized Router
Compact, ruggedized Gigabit-Class LTE router for advanced in-vehicle and IoT connectivity

Cradlepoint IBR900

Cradlepoint Products
NetCloud IBR900 Router - Mobile Packages
NetCloud Mobile Essentials Plan and IBR900 Router with Wi-Fi (1000 Mbps modem), 1 year
#MA1-0900120B-NNA
Our Price: $999.00
NetCloud Mobile Essentials Plan and IBR900 Router with Wi-Fi (1000 Mbps modem), 3 years
#MA3-0900120B-NNA
Our Price: $1,248.00
NetCloud Mobile Essentials Plan and IBR900 Router with Wi-Fi (1000 Mbps modem), 5 years
#MA5-0900120B-NNA
Our Price: $1,509.00

Click here to jump to more pricing!

Overview:

The purpose-built router

Cradlepoint endpoints provide industry-leading, Gigabit-Class LTE connectivity as well as Ethernet and Wi-Fi. These purpose-built endpoints are sold with a subscription to NetCloud Service for Mobile or IoT which provides streamlined configuration and continuous cloud, modem, and router software feature enhancements.

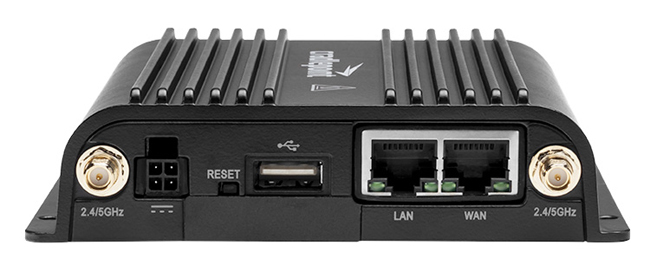

The Cradlepoint IBR900 Series Router is a ruggedized, Gigabit-Class LTE networking platform. It is designed for persistent connectivity across a wide range of in-vehicle and mobile applications as well as portable or fixed IoT installations. The IBR900 Series is available with either Mobile or IoT NetCloud Service plans, which provide features optimized for the differing deployments.


icon-firewall-throughput

Passthrough Throughput:
940 Mbps

icon-wan-connectivity

WAN Connectivity:
4G Cat 11 or Cat 18, GbE

icon-lan-connectivity

LAN Connectivity:
Wi-Fi 5, GbE

icon-firewall-throughput

Management:
NetCloud

Notable Features

  • Define policies through centralized cloud-based management for easy deployment at scale.
  • Gain fast, reliable connectivity with an embedded Cat 11 or Cat 18 LTE modem.
  • Add a second cellular modem for simultaneous dual-carrier LTE connectivity.
  • Prioritize access on public safety networks for reliable, secure connectivity.
  • Deploy Wave 2 dual-band, dual-concurrent, Gigabit Wi-Fi for the best possible connections.
  • Integrate into Automatic Vehicle Location (AVL) systems with Active GPS.
  • Provide a ruggedized solution to endure harsh environments.
  • Configure GPIO ports for IoT and vehicle integrations.

High Performance Mobile Connectivity

For organizations that depend on field forces and mobile networks, the Cradlepoint IBR900 Series Router with the NetCloud Mobile service plan provides a ruggedized GPS-enabled, in-vehicle network solution. When coupled with the Advanced Mobile service plan, it provides threat management, web filtering, application visibility, analytics, and advanced GPS functionality including location tracking and cellular coverage maps. The IBR900 accommodates environmentally harsh environments while delivering enterprise-class standards of reliability, scalability, comprehensive management, and security.

Ruggedized IoT Solution

When coupled with the NetCloud Ruggedized IoT service plan, the IBR900 provides a compact, ruggedized, 4G LTE router solution for connecting and protecting IoT devices at scale. It is ideal for IoT deployments including oil and gas monitoring, Smart City infrastructure, and other IoT deployments operating under harsh conditions. With an extensive list of safety and hardening certifications, it can be confidently deployed in the field, in buildings, or in embedded systems to deliver complete visibility, security, and control of connected devices anywhere.

Performance


Stateful Firewall Throughput:

940 Mbps

NetCloud Perimeter Throughput:

20 Mbps

IPSec VPN Throughput:

20 Mbps


Concurrent VPN Tunnels:

10

Concurrent Sessions (TCP):

16,000

Typical Client Count:

10*


Performance testing was conducted based on requirements as defined in RFC2544 using fixed-frame 1518 byte packets. Throughput results reflect unidirectional UDP traffic with less than 1% packet loss as tested with wired connections.

Results do not reflect performance of the cellular wireless operator networks.

* When Cradlepoint Secure Threat Management or Applications Analytics are enabled in NetCloud Manager, the client count is reduced to 5.


Features and Benefits:

Key Software Capabilities

Cradlepoint NetCloud Service for the IBR900 provides everything needed to unlock the power of LTE and connect vehicles, users, and IoT to critical applications and services. The available NetCloud IoT or Mobile service plans include the appropriate router software with powerful cloud management features for managing IoT at scale, or mobile-specific features like coverage maps, and application aware analytics. Everything within NetCloud works together, making it easy to deploy, connect, and secure edge applications at scale across the organization.


Router Services

Next generation hardware provides local processing power to handle demanding router-delivered services, such as support for VPN tunneling encryption including DMVPN, IPsec, GRE, and other tunneling technologies.

Cradlepoint IBR900 feature1


Cradlepoint IBR900 feature2

Cloud Services

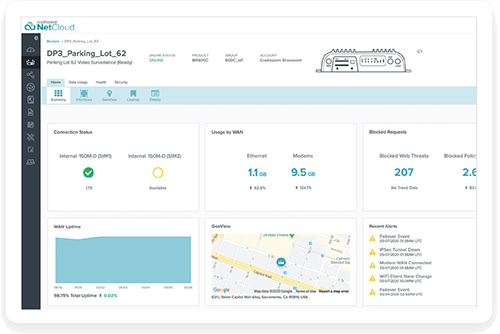

NetCloud Manager delivers true zero-touch deployment with the ability to define and deliver policy across entire groups of endpoints. Users can create a cloud-orchestrated hub and spoke VPN network and gain insights and analytics required for rapid troubleshooting and diagnostic workflows. Support operations with real time location services and vehicle information.


Security Services

NetCloud Service includes security features and options to optimize the IBR900 to meet the evolving security needs of mobile and IoT environments. The service includes stateful zone-based firewall with the ability to add application aware security policies with the Advanced Mobile service plan.

Cradlepoint IBR900 feature3


Cradlepoint IBR900 feature4

Connection Manager

Connection Manager provides the ability to manage all WAN connections types including wireless, Wi-Fi as WAN, and wired, from a single software-defined policy. Our custom-built modem software ensures users establish Wireless WAN connectivity faster while maintaining the highest level of resiliency.

Specifications:


IBR900 Ruggedized Router Specifications

Category

Mobile & IoT

Cloud Management

Yes

5G Status

Gigabit-Class LTE

Form Factor

Ruggedized Metal

Ethernet Ports

2 GbE (LAN/WAN switchable)

USB Ports

1

Serial Ports

0

Dual-Modem Support

Yes with COR Extensibility Dock

Network Operator Standards

PTCRB (U.S.), GCF (global)

Network Operator Certifications

AT&T, Verizon, Telstra

Regions

North America, Latin America, Europe, Africa & Middle East, Asia-Pacific

Public Safety Networks

FirstNet Ready™; Verizon Frontline

Firewall Throughput

940 Mbps

VPN Tunnel Count

10

Wi-Fi

Dual-band, dual-concurrent; 802.11ac Wave 2 (Wi-Fi 5)

GNSS/GPS

1 x SMA GNSS antenna connector

PoE

No

Operating Temperature

-30 °C to 70 °C (-22 °F to 158 °F)

Rack Mountable

No

Size

118 x 114 x 30 mm (4.6 x 4.5 x 1.2 in)

Weight

400 g (14 oz)


Enterprise-Class Modem Specifications

Specification 1200M-B
Technology Cat 18 LTE Advanced Pro (3GPP Rel. 12)
  • Dual SIM slots, mini 2FF form factor
  • SIM-based carrier auto-selection
Fallback WCDMA/UMTS/HSPA+
Carrier Aggregation Up to 5CA downlink, 2CA uplink
Peak Downlink Rates
  • LTE: 1 Gbps
  • WCDMA: 42.2 Mbps
Peak Uplink Rates
  • LTE 150 Mbps
  • WCDMA: 5.76 Mbps
MIMO 2x2 MIMO
QAM Up to 256
LTE Bands LTE FDD
  • B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B39, B41, B66, B71
WCDMA Bands B1, B2, B4, B5, B8, B19
Power LTE 23 dBm ± 1, DC-HSPA+ 23 dBm ± 1 (typical conducted)
Antennas SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 2, included)
GNSS/GPS Active GNSS
  • GPS, GLONASS, BeiDou, Galileo
  • DC voltage bias supplied (typical 3.1v)
SMS Yes
Regulatory FCC (U.S.), IC (Canada)
Network Operator Standards PTCRB (U.S.)
Network Operator Certifications AT&T, Verizon*
Public Safety Network Certifications Verizon Frontline, FirstNet Ready™
Private Cellular Network N/A

Specification 600M
Technology Cat 11 LTE Advanced (3GPP Rel. 11)
  • Dual SIM slots, mini 2FF form factor
  • SIM-based carrier auto-selection
Fallback WCDMA/UMTS/HSPA+
Carrier Aggregation Up to 3CA downlink, 2CA uplink
Peak Downlink Rates
  • LTE: 600 Mbps
  • WCDMA: 42.2 Mbps
Peak Uplink Rates
  • LTE: 75 Mbps
  • WCDMA: 5.76 Mbps
MIMO 2x2 MIMO
QAM Up to 256
LTE Bands
LTE FDD
  • B1, B2, B3, B4, B5, B7, B8, B12, B13, B17, B20, B25, B26, B28, B29, B30, B66
LTE TDD
  • B38, B40, B41
WCDMA Bands B1, B2, B4, B5, B8
Power LTE 23 dBm ± 1; HSPA+ 23 dBm ± 1 (typical conducted)
Antennas SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 2, included)
GNSS/GPS Active GNSS
  • GPS, GLONASS, BeiDou, Galileo
  • DC voltage bias supplied (typical 3.1v)
SMS Yes
Regulatory FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ), ICASA (ZA), iMDA (SG), SIRM QAS (MY), Ifitel NOM (MX), Subtel (CL/CR), CRC (CO)
Network Operator Standards PTCRB (U.S.), GCF (Worldwide)
Network Operator Certifications AT&T, Verizon, Sprint, Optus, Telstra, EE*
Public Safety Network Certifications Verizon Frontline, Verizon Response Verified
Private Cellular Network N/A

* Cellular carriers and operators throughout the world may only require telecom industry certifications, like PTCRB or GCF, to operate on their network. Some carriers require additional testing and approval, beyond telecom certifications. A carrier listed in the approvals section means Cradlepoint completed additional testing and acquired technical approval for that given carrier. Any carrier not listed may not require additional testing or approval beyond telecom industry certifications to operate on their network.
