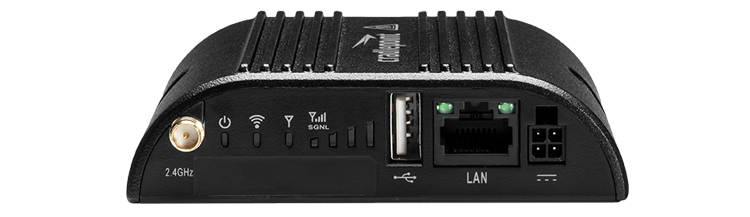

Cradlepoint IBR200 Series Router
Semi-ruggedized, compact 4G LTE router for IoT applications

Cradlepoint IBR900

Cradlepoint Products
NetCloud IoT Gateway Essentials Package
NetCloud IoT Gateway Essentials with IBR200-10M for Verizon, 3 years
#TB3-020010M-VNN
Our Price: $309.00
NetCloud IoT Gateway Essentials with IBR200-10M for Verizon, 5 years
#TB5-020010M-VNN
Our Price: $369.00
NetCloud IoT Gateway Essentials with IBR200-10M for AT&T and generic, 3 years
#TB3-020010M-ANN
Our Price: $309.00
NetCloud IoT Gateway Essentials with IBR200-10M for AT&T and generic, 5 years
#TB5-020010M-ANN
Our Price: $369.00
NetCloud IoT Gateway Essentials with IBR200-10M for Sprint, 3 years
#TB3-020010M-SNN
Our Price: $309.00
NetCloud IoT Gateway Essentials with IBR200-10M for Sprint, 5 years
#TB5-020010M-SNN
Our Price: $369.00

Click here to jump to more pricing!

Overview:

The purpose-built router

Cradlepoint endpoints provide industry-leading, LTE connectivity as well as Ethernet and Wi-Fi. These purpose-built endpoints are sold with a subscription to NetCloud Service for IoT which provides streamlined configuration and continuous cloud, modem, and router software feature enhancements.


Cradlepoint’s NetCloud Service for IoT with the IBR200 Series Router is a purpose-built, IoT networking solution with industry-leading features. With its compact size, external cellular and Wi-Fi antennas, and the capability to operate in a wide temperature range, the Cradlepoint IBR200 is ideal for use in IoT applications including plant and machinery controls, surveillance cameras, digital signs, kiosks, and ATMs.


icon-firewall-throughput

Passthrough Throughput:
60 Mbps

icon-wan-connectivity

WAN Connectivity:
4G Cat 1

icon-lan-connectivity

LAN Connectivity:
Wi-Fi 4, 10/100

icon-firewall-throughput

Management:
NetCloud

Notable Features

  • Deploy a competitively priced value-driven IoT networking solution with industry-leading features
  • Define policies through centralized cloud-based management for easy deployment at scale
  • Connect with an LTE Category 1 modem that provides performance and affordability for moderate data rate applications
  • Support Wi-Fi for easy deployment and connectivity of things
  • Expand with custom solutions using GPIOs, NetCloud SDK and API, and NetCloud Edge Connector for Microsoft Azure IoT Central
  • Secure with zone-based firewall or NetCloud Perimeter and advanced security for PCI-compliant networking
  • Provide a semi-ruggedized solution with wide temperature range for broad deployment options

Ideal for Cellular IoT Connectivity

The IBR200 provides connectivity options including Cat 1 LTE modem, Ethernet, Wi-Fi, GPIO ports, and passive GPS. It provides a semi-ruggedized enterprise class networking platform that can be confidently deployed in diverse implementations such as smart cities, manufacturing, and other IoT scenarios requiring robust connectivity. The IBR200 accommodates a wide range of environments while delivering enterprise-class standards of reliability, scalability, comprehensive management, and security.

Robust Cloud Managed IoT Solution

For organizations requiring robust connectivity for IoT networks — with installed routers numbering from hundreds to many thousands — Cradlepoint’s NetCloud Service for IoT with the IBR200 router provides a comprehensive cloud managed network solution. When coupled with advanced IoT features, it provides troubleshooting and diagnostics with in-band and out-of-band management, extensive analytics and insights, and extensibility and integrations such as Microsoft Azure IoT Central. Cradlepoint’s NetCloud-managed IoT endpoints can be rapidly deployed and easily scaled to accommodate the diverse requirements of organizations.

Performance


Stateful Firewall Throughput:

60 Mbps

NetCloud Perimeter Throughput:

10 Mbps

IPSec VPN Throughput:

10 Mbps


Concurrent VPN Tunnels:

2

Concurrent Sessions (TCP):

16,000

Typical Client Count:

5


Performance testing was conducted based on requirements as defined in RFC2544 using fixed-frame 1518 byte packets. Throughput results reflect unidirectional UDP traffic with less than 1% packet loss as tested with wired connections.

Results do not reflect performance of the cellular wireless operator networks.


Features and Benefits:

Key Software Capabilities

NetCloud Service provides powerful centralized management for every Cradlepoint cellular-enabled router, including the IBR200. NetCloud allows customers to build and manage wireless WANs with complete lifecycle management, zero-touch deployment, robust security, and traffic management for optimal application performance and reliability. The cloud capabilities include group policy definition, reports, troubleshooting, and visual analytics dashboards. With a continuous subscription to NetCloud, Cradlepoint routers maintain their limited lifetime warranty, access to online training, live and online support, and software and firmware updates.


Advanced Software Lifecycle Management

NetCloud improves the typical software lifecycle management process. New features are continuously delivered to the NetCloud Service and available for the router without interrupting network performance. Software versions are tracked for every endpoint, with the latest version just a click away. Straightforward subscription and license management is provided to keep the network running without interruption.

Cradlepoint IBR200 feature1


Cradlepoint IBR900 feature2

Cloud Services

NetCloud Manager delivers zero-touch deployment with the ability to define and deliver policy across entire groups of endpoints. Users can gain insights and analytics required for rapid troubleshooting and diagnostic workflows. Location services provides last known map location and geofence alerting for loss prevention and physical security.

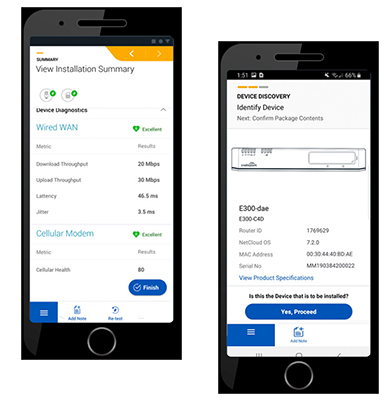

Cradlepoint Verify™ Mobile Application

Cradlepoint Verify is a mobile application that simplifies and customizes steps to install the Cradlepoint IBR200 Router. Upon a verified installation, users receive a detailed report that includes installation pictures, speed test results, and modem health metrics.

Cradlepoint IBR200 feature3


Cradlepoint IBR900 feature4

Connection Manager

Connection Manager provides the ability to manage all WAN connection types including wireless, Wi-Fi-as-WAN, and wired, from a single software-defined policy. Our proprietary modem software ensures users establish Wireless WAN connectivity faster while maintaining the highest level of resiliency.

Specifications:


IBR200 Router Specifications

Category

IoT

Cloud Management

Yes

Wireless Connectivity

LTE

5G Status

None

Form Factor

Metal

Ethernet Ports

1 FE (LAN only)

USB Ports

1

Serial Ports

0

Dual-Modem Support

No

Network Operator Standards

PTCRB (U.S.), GCF (global)

Network Operator Certifications

AT&T, Verizon

Regions

North America, Latin America, Europe, Africa & Middle East, Asia-Pacific

Public Safety Networks

Verizon Frontline

Firewall Throughput

60 Mbps

VPN Tunnel Count

2

Wi-Fi

802.11 b/g/n (Wi-Fi 4)

GNSS/GPS

Passive GNSS

PoE

No

Operating Temperature

-20 °C to 60 °C (-4 °F to 140 °F)

Size

3.0 × 3.7 × 1.0 in (76.5 × 94.5 × 24.5 mm)

Weight

6 oz (175 g)


Enterprise-Class Modem Specifications

Specification 10M (Verizon) 10M-B (AT&T, T-Mobile) 10M-C (Sprint)
Technology Cat 1 LTE (3GPP Rel.10)
  • Single SIM slot, 2FF form factor
Cat 1 LTE (3GPP Rel.10)
  • Single SIM slot, 2FF form factor
Cat 1 LTE (3GPP Rel.10)
  • Single SIM slot, 2FF form factor
Fallback N/A WCDMA/UMTS/HSPA+ N/A
Carrier Aggregation N/A N/A N/A
Peak Downlink Rates LTE: 10 Mbps LTE: 10 Mbps LTE: 10 Mbps
Peak Uplink Rates LTE: 5 Mbps LTE: 5 Mbps LTE: 5 Mbps
MIMO N/A N/A N/A
QAM Up to 16 Up to 16 Up to 16
LTE Bands LTE FDD
  • B4, B13
LTE FDD
  • B2, B4, B5, B12
LTE FDD
  • B2, B4, B5, B12, B25, B26
WCDMA Bands N/A B2, B4, B5 N/A
Power LTE only: 23 dBm ± 1 (typical conducted) LTE only: 23 dBm ± 1 (typical conducted)
HSPA+: 23 dBm ± 1 (typical conducted)
LTE only; 23 dBm ± 1 (typical conducted)
Antennas SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (qty 2. included) SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (qty 2. included) SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (qty 2. included)
GNSS/GPS Passive GNSS
  • Multiplex on AUX antenna port
Passive GNSS
  • Multiplex on AUX antenna port
N/A
SMS Yes Yes Yes
Regulatory FCC (U.S.), UL (U.S.) FCC (U.S.), UL (U.S.), IC (Canada) FCC (U.S.), UL (U.S.)
Network Operator Standards PTCRB (U.S., Canada) PTCRB (U.S., Canada) PTCRB (U.S., Canada)
Network Operator Certifications Verizon* AT&T* Sprint*

* Cellular carriers and operators throughout the world may only require telecom industry certifications, like PTCRB or GCF, to operate on their network. Some carriers require additional testing and approval, beyond telecom certifications, to operate on their network. A carrier listed in the approvals section means Cradlepoint completed additional testing and acquired technical approval for that given carrier. Any carrier not listed may not require additional testing or approval beyond telecom industry certifications to operate on their network.


Documentation:

Download the Cradlepoint IBR200 Series Router Datasheet (.PDF)
