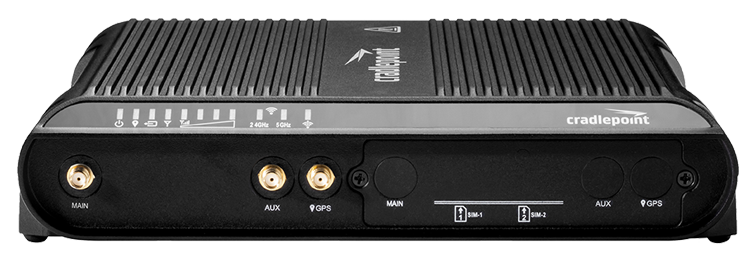

Cradlepoint IBR1700 Series Ruggedized Router
Ruggedized Gigabit-Class LTE router for the most demanding in-vehicle networking applications

Cradlepoint IBR1700

Cradlepoint Products
NetCloud IBR1700 Router - Mobile Packages
NetCloud Mobile Essentials Plan and IBR1700 router with Wi-Fi (600 Mbps modem), 1 year
#MA1-1700600M-NNA
Our Price: $1,615.00
NetCloud Mobile Essentials Plan and IBR1700 router with Wi-Fi (600 Mbps modem), 3 years
#MA3-1700600M-NNA
Our Price: $1,934.00
NetCloud Mobile Essentials Plan and IBR1700 router with Wi-Fi (600 Mbps modem), 5 years
#MA5-1700600M-NNA
Our Price: $2,288.00

Click here to jump to more pricing!

Overview:

The purpose-built router

Cradlepoint endpoints provide industry-leading, Gigabit-Class LTE connectivity as well as Ethernet and Wi-Fi. These purpose-built endpoints are sold with a subscription to NetCloud Service for Mobile which provides streamlined configuration and continuous cloud, modem, and router software feature enhancements.


Cradlepoint’s NetCloud Mobile Service with the IBR1700 Series Ruggedized Router is a Gigabit-Class LTE networking platform designed to provide persistent connectivity for in-vehicle deployments. Cradlepoint NetCloud provides connectivity, network, security, and location services to connect everything in the vehicle, while providing access to IT for remote management, troubleshooting, and analytics.


icon-firewall-throughput

Passthrough Throughput:
940 Mbps

icon-wan-connectivity

WAN Connectivity:
4G Cat 11 or Cat 18, GbE

icon-lan-connectivity

LAN Connectivity:
Wi-Fi 5, GbE

icon-firewall-throughput

Management:
NetCloud

Notable Features

  • Deploy high-speed connectivity with Gigabit LTE, Wi-Fi, and Ethernet delivering enterprise grade performance.
  • Gain 5G Ready capabilities with a second modem slot and captive modem functionality for simultaneous multi-carrier connectivity.
  • Prioritize access on public safety networks for reliable, secure connectivity.
  • Integrate into Automatic Vehicle Location systems with discrete GNSS and dead reckoning.
  • Extend your deployment with GPIOs, NetCloud SDK and API, and container support for customizable solutions.
  • Define policies through centralized cloud-based management for easy deployment at scale.
  • Enable unified edge security with application aware multizone firewalls, IDS/IPS, and internet security.
  • Create a cellular coverage map for complete visibility into your area’s 5G and LTE coverage (5G mapping requires an optional 5G modem).

High Performance In-Vehicle Connectivity

The Cradlepoint IBR1700 Series Ruggedized Router for vehicles with the NetCloud Mobile Service was designed for organizations that depend on field forces and mobile networks. In addition to embedded Gigabit Class LTE, it also includes tri-radio Wi-Fi allowing dedicated radios for video offload, enhanced security, better signal quality, and higher client capacities. NetCloud Mobile advanced features add threat management, web filtering, application visibility, analytics, and advanced GNSS/GPS functionality including location tracking and cellular coverage maps to the service.

5G Ready for Upward Compatibility

The IBR1700 Series Ruggedized Router for in-vehicle uses is 5G-ready with the ability to be field upgraded and accept a future generation modular 5G modem. In addition, it can act as a controller for a Cradlepoint 5G Wideband Adapter. The unique capability of Cradlepoint to operate the adapter in captive mode allows two separate, Ethernetconnected appliances to be managed as a single entity. These two capabilities ensure investment protection and upward compatibility to the latest LTE and 5G technology as they evolve over time.

Performance


Stateful Firewall Throughput:

940 Mbps

NetCloud Perimeter Throughput:

20 Mbps

IPSec VPN Throughput:

20 Mbps


Concurrent VPN Tunnels:

10

Concurrent Sessions (TCP):

32,000

Typical Client Count:

30


Performance testing was conducted based on requirements as defined in RFC2544 using fixed-frame 1518 byte packets. Throughput results reflect unidirectional UDP traffic with less than 1% packet loss as tested with wired connections.

Results do not reflect performance of the cellular wireless operator networks.


Features and Benefits:

Key Software Capabilities

Cradlepoint NetCloud Mobile Service with the IBR1700 in-vehicle router provides everything needed to unlock the power of cellular technology to connect vehicles, users, and IoT to critical applications and services. NetCloud includes router software for optimizing routing, VPN, SD-WAN, and security capabilities along with capabilities centralized in the cloud such as group policy definition, reports, troubleshooting, and analytics dashboards as well as cellular coverage maps. NetCloud Service includes a warranty (for the router), online training, live and online support, and continuous software updates for both the router and the modem.

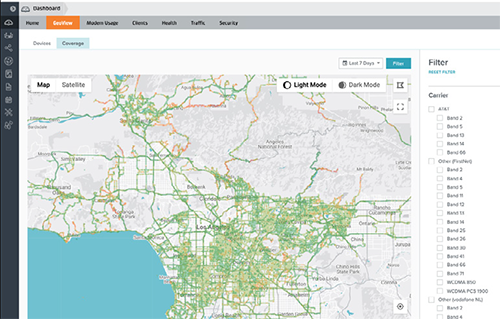

Coverage Map

NetCloud uses GNSS/GPS and 5G/4G cellular health to provide precise analytics about location and signal strength. Data can be mapped to display both the current and historical locations of a vehicle, as well as generate detailed coverage maps that display cellular health, allowing users to gain operational insights and solve problems.

Cradlepoint IBR1700 feature1


Cradlepoint IBR1700 feature2

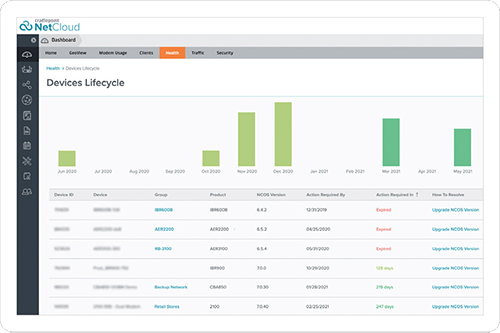

Advanced Software Lifecycle Management

NetCloud improves the typical software lifecycle management process. New features are continuously delivered to NetCloud and become available for the router without interrupting network performance. Software versions are tracked for every endpoint, with the latest update just a click away. Straightforward subscription and license management is easily accessible and provided to keep the network running without interruption.


Security Services

NetCloud Service advanced security features add application aware zone-based firewall, CP Secure Threat Management (IPS/IDS), and CP Secure Web Filter for protecting your network and meeting the evolving security needs of in-vehicle environments

Cradlepoint IBR1700 feature3


Cradlepoint IBR1700 feature4

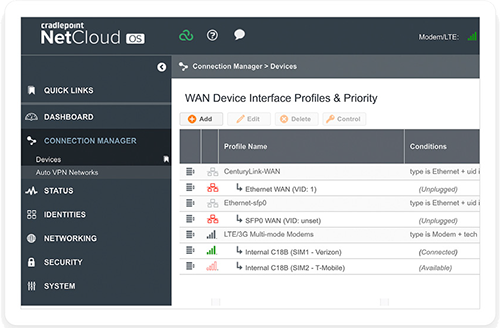

Connection Manager

Connection Manager provides the ability to manage all WAN connections types including wireless, Wi-Fi as WAN, and wired, from a single software-defined policy. Our custom-built modem software ensures users establish Wireless WAN connectivity faster while maintaining the highest level of resiliency.

Specifications:


IBR1700 Ruggedized Router Specifications

Category

Mobile

Cloud Management

Yes

Wireless Connectivity

Gigabit-Class LTE

5G Status

5G Ready

Form Factor

Ruggedized Metal

Ethernet Ports

5 GbE (LAN/WAN switchable)

USB Ports

1

Serial Ports

1

Dual-Modem Support

Yes

Network Operator Standards

PTCRB (U.S.), GCF (global)

Network Operator Certifications

AT&T, Verizon

Regions

North America, Latin America, Europe, Africa & Middle East, Asia-Pacific

Public Safety Networks

ESN, FirstNet Ready™; Verizon Frontline

Firewall Throughput

940 Mbps

VPN Tunnel Count

10

Wi-Fi

Dual-band, tri-radio Wi-Fi; 802.11ac Wave 2 (Wi-Fi 5)



GNSS/GPS

1 x SMA GPS antenna connector

PoE

No

Operating Temperature

-30 °C to 70 °C (-22 °F to 158 °F)

Rack Mountable

Yes

Private Cellular Network

Yes

Size

224.3 × 190 × 44 mm (8.8 × 7.5 × 1.7 in)

Weight

1.7 kg (3 lb 7 oz)


Enterprise-Class Modem Specifications

Specification IBR1700-600M IBR1700-1200M-B
Technology Category 11 LTE Advanced
  • Dual SIM slots, 2FF form factor
  • SIM-based auto-carrier selection
Cat 18 LTE Advanced Pro (3GPP Rel. 12)
  • Dual SIM slots, 2FF form factor
  • SIM-based auto-carrier selection
Fallback WCDMA/UMTS/HSPA+ WCDMA/DC-HSPA+
Carrier Aggregation Up to 5CA downlink, 2CA uplink Up to 5CA downlink, 2CA uplink
Peak Downlink Rates
  • LTE: 600 Mbps
  • HSPA+: 42.2 Mbps
  • LTE: 1.2 Gbps
  • DC-HPSA+: 42.2 Mbps
Peak Uplink Rates
  • LTE: 75 Mbps
  • HSPA+: 5.76 Mbps
  • LTE: 150 Mbps
  • DC-HPSA+: 5.76 Mbps
MIMO 2x2 MIMO 4x4 MIMO
QAM Up to 256 Up to 256
LTE Bands LTE FDD
  • B1, B2, B3, B4, B5, B7, B8, B12, B13, B17, B20, B25, B26, B28, B29, B30, B66

LTE TDD
  • B38, B40, B41
LTE FDD
  • B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B66, B71

LTE TDD
  • B38, B39, B40, B41, B42, B43, B46, B48
WCDMA Bands B1, B2, B4, B5, B8, B19 B1, B2, B4, B5, B8, B9, B19
Power LTE 23 dBm ± 1, HSPA+ 23 dBm ± 1 (typical conducted) LTE 23 dBm ± 1, DC-HSPA+ 23 dBm ± 1 (typical conducted)
Antennas SMA male connectors, external 600 MHz - 6 GHz cellular paddle antennas SMA male connectors, external 600 MHz - 6 GHz cellular paddle antennas
GNSS/GPS Discrete Active GPS with Dead Reckoning Discrete Active GPS with Dead Reckoning
SMS Yes Yes
Regulatory FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ) FCC (U.S.), IC (Canada), CE (EU), RCM (AU/NZ)
Network Operator Standards PTCRB (U.S., Canada), GCF (Worldwide) PTCRB (U.S., Canada), GCF (Worldwide)
Network Operator Certifications AT&T, Verizon* AT&T, Verizon*
Public Safety Network Certifications Verizon Frontline Verison Frontline, FirstNet Ready™
(including Band 14)
Private Cellular Network N/A Yes, includes FCC Part 96 (CBRS Band 48)

* Cellular carriers and operators throughout the world may only require telecom industry certifications, like PTCRB or GCF, to operate on their network. Some carriers require additional testing and approval, beyond telecom certifications, to operate on their network. A carrier listed in the approvals section means Cradlepoint completed additional testing and acquired technical approval for that given carrier. Any carrier not listed may not require additional testing or approval beyond telecom industry certifications to operate on their network.


Documentation:

Download the Cradlepoint IBR1700 Series Ruggedized Router Datasheet (.PDF)
