Cradlepoint E300
5G-ready router with a powerful combination of services and performance

Cradlepoint E300

Cradlepoint Products
Advanced 5G Ready Router E300 Series
NetCloud Enterprise Branch Essentials Package with E300-C4D, 1-yr
1-yr NetCloud Enterprise Branch Essentials Plan and E300 router with WiFi (150 Mbps modem), North America
#BF01-0300C4D-NN
Our Price: $899.00
NetCloud Enterprise Branch Essentials Package with E300-C4D, 3-yr
3-yr NetCloud Enterprise Branch Essentials Plan and E300 router with WiFi (150 Mbps modem), North America
#BF03-0300C4D-NN
Our Price: $1,379.00
NetCloud Enterprise Branch Essentials Package with E300-C4D, 5-yr
5-yr NetCloud Enterprise Branch Essentials Plan and E300 router with WiFi (150 Mbps modem), North America
#BF05-0300C4D-NN
Our Price: $1,859.00

Click here to jump to more pricing!

Overview:


Key Software Capabilities

Cradlepoint NetCloud Service for the E300 provides everything needed to unlock the power of LTE at the network edge and connect users and IoT devices to critical applications and services. The NetCloud Service package for the E300 includes router software for optimizing routing, VPN, SD-WAN, and security capabilities. The cloud capabilities include group policy definition, reports, troubleshooting, and analytics dashboards. The service includes a warranty for as long as there is an active subscription on the router, online training, live and online support, and all software and firmware updates.

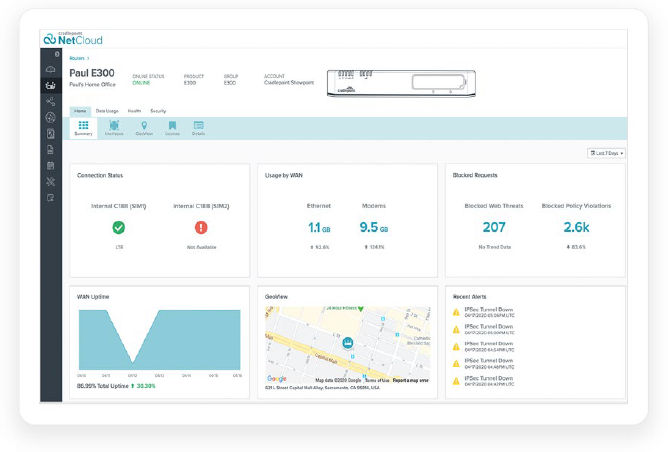

Router Services

Security Services

NetCloud Service includes security features and options to optimize the E300 to meet the evolving security needs of distributed environments. The service includes stateful zone-based firewall enhancement capability to Application Aware Traffic Steering with the Advanced package.


Connection Manager

Connection Manager provides the ability to manage all WAN connections types, both wireless and wired, from a single software-defined policy. Our custom-built modem software ensures users establish Wireless WAN connectivity faster while maintaining the highest level of resiliency.

Connection Manager

Cloud Services

Cloud Services

NetCloud Service includes security features and options to optimize the E300 to meet the evolving security needs of distributed environments. The service includes stateful zone-based firewall enhancement capability to Application Aware Traffic Steering with the Advanced package.


Security Services

NetCloud Manager delivers true zero-touch deployment with the ability to define and deliver policy across entire groups of endpoints. Users can create a cloud-orchestrated hub and spoke VPN network and gain insights and analytics required for rapid troubleshooting and diagnostic workflows.

Security Services

Features / Performance:

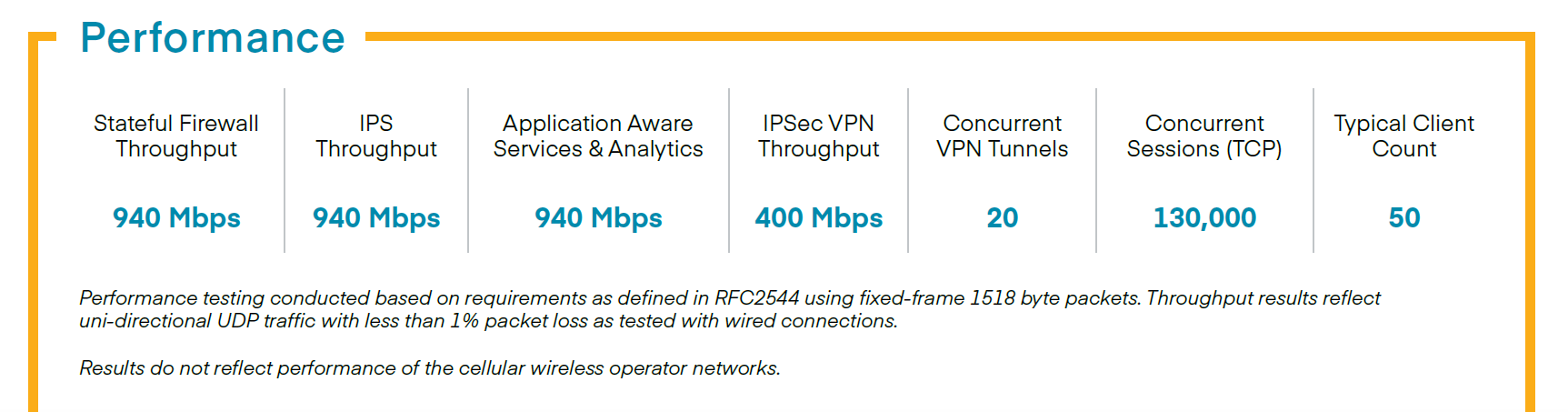

Performance

Ideal for Wireless WAN

For organizations moving to a Wireless WAN, the E300 offers the ability to pair LTE with a wired link and use LTE as a failover connection or a primary connection. For an all wireless WAN, the E300 offers Gigabit-Class LTE performance, which can support the throughput needs of a small- or medium-sized branch with the ability to add a second LTE connection to increase available bandwidth and reliability.

5G Ready for Upward Compatibility

The E300 Enterprise Branch Router is 5G Ready and can act as a controller for a Cradlepoint 5G Wideband Adapter. This capability ensures upward compatibility for 5G, while still allowing optimal placement of the 5G adapter. The unique capability of Cradlepoint to operate the adapter in captive mode means that the two separate, Ethernet-connected, appliances can be managed as a single entity.


Other Features:

  • Take advantage of an embedded, Gigabit-Class LTE modem for fast day-1 or primary connectivity.
  • Terminate a primary wired broadband link with LTE as failover for highly resilient hybrid connectivity.
  • Open temporary locations without compromising security or reliability with an all-in-one design and compact form factor.
  • Integrate into your existing network with standards-based dynamic routing and VPN tunnel support.
  • Define policies through centralized, cloud-based management for easy deployment at scale.
  • Add a second cellular modem for dual LTE connectivity.
  • 5G Ready acting as Captive Modem controller for Cradlepoint 5G Wideband Adapters.

Specifications:

SPECIFICATION

E300-C18B

E300-C4D

Technology:

Cat 18 LTE Advanced Pro (3GPP Rel. 12)

Cat 4 LTE (3GPP Rel. 11)



Dual SIM slots, mini 2FF form factor

Dual SIM slots, mini 2FF form factor



SIM-based auto-carrier selection

SIM-based auto-carrier selection

Fallback:

WCDMA/UMTS/HSPA+

WCDMA/UMTS/HSPA+

Carrier Aggregation:

Up to 5 x CA downlink, 2 x CA uplink

N/A



Refer to modem carrier aggregations article



Peak Downlink Rates:

LTE: 1.2 Gbps

LTE: 150 Mbps



WCDMA: 42.2 Mbps

WCDMA: 42.2 Mbps

Peak Uplink Rates:

LTE 150 Mbps

LTE 50 Mbps



WCDMA: 5.76 Mbps

WCDMA: 5.76 Mbps

MIMO:

4x4 MIMO

2x2 MIMO

QAM:

256

64

LTE Bands:

LTE FDD

LTE FDD



B1, B2(B25), B3, B4(B66), B5(B26/B18/B19), B7,

B2, B4, B5, B12, B13, B14, B66, B71



B8, B12, B13, B14, B20, B28, B29, B30, B32, B71





LTE TDD





B38, B39, B40, B41, B42, B43, B46, B48



WCDMA Bands:

B1, B2, B4, B5(B19), B8

B2, B4, B5

Power:

LTE 23 dBm ± 1, DC-HSPA+ 23 dBm ± 1 (typical

LTE 23 dBm ± 1; HSPA+ 23 dBm ± 1 (typical



conducted)

conducted)

Antennas:

SMA female connectors, external 600 MHz - 6 GHz

SMA female connectors, external 600 MHz - 6 GHz



cellular paddle antennas (qty 4. included)

cellular paddle antennas (qty 2. included)

GNSS/GPS:

Active GNSS

Passive GNSS



GPS, GLONASS, BeiDou, Galileo

GPS, GLONASS, BeiDou, Galileo



DC voltage bias supplied (typical 3.1v)



SMS:

Yes

Yes

Regulatory:

FCC, IC, CE, RCM

FCC, IC

Telecom:

PTCRB, GCF

PTCRB

Required Carrier Certifications*:

AT&T, Verizon, Telstra (Cat 16)

AT&T, Verizon

Public Safety Network Certifications:

N/A

FirstNet ReadyTM (including Band 14)

Private LTE:

Yes, includes FCC Part 96 (CBRS Band 48)

N/A


Documentation:

Download the Cradlepoint E300 Series Datasheet (.PDF)

Pricing Note:

Cradlepoint Products
Advanced 5G Ready Router E300 Series
NetCloud Enterprise Branch Essentials Package with E300-C4D, 1-yr
1-yr NetCloud Enterprise Branch Essentials Plan and E300 router with WiFi (150 Mbps modem), North America
#BF01-0300C4D-NN
Our Price: $899.00
NetCloud Enterprise Branch Essentials Package with E300-C4D, 3-yr
3-yr NetCloud Enterprise Branch Essentials Plan and E300 router with WiFi (150 Mbps modem), North America
#BF03-0300C4D-NN
Our Price: $1,379.00
NetCloud Enterprise Branch Essentials Package with E300-C4D, 5-yr
5-yr NetCloud Enterprise Branch Essentials Plan and E300 router with WiFi (150 Mbps modem), North America
#BF05-0300C4D-NN
Our Price: $1,859.00
NetCloud Enterprise Branch Essentials Package with E300-C18B, 5-yr, NA
5-yr NetCloud Enterprise Branch Essentials Plan and E300 router with WiFi (1200 Mbps modem), North America
#BF05-0300C18B-GN
Our Price: $2,369.00
NetCloud Enterprise Branch Essentials Package with E300-C18B, 1-yr, NA
1-yr NetCloud Enterprise Branch Essentials Plan and E300 router with WiFi (1200 Mbps modem), North America
#BF01-0300C18B-GN
Our Price: $1,409.00
NetCloud Enterprise Branch Essentials Package with E300-C18B, 3-yr, NA
3-yr NetCloud Enterprise Branch Essentials Plan and E300 router with WiFi (1200 Mbps modem), North America
#BF03-0300C18B-GN
Our Price: $1,889.00
NetCloud Enterprise Branch Essentials Renewal
Renewal NetCloud Enterprise Branch Essentials Plan, 1 yr
1-yr Renewal NetCloud Enterprise Branch Essentials Plan
#BF01-NCESS-R
Our Price: $246.00
Renewal NetCloud Enterprise Branch Essentials Plan, 3 yr
3-yr Renewal NetCloud Enterprise Branch Essentials Plan
#BF03-NCESS-R
Our Price: $738.00
Renewal NetCloud Enterprise Branch Essentials Plan, 5 yr
5-yr Renewal NetCloud Enterprise Branch Essentials Plan
#BF05-NCESS-R
Our Price: $1,230.00
