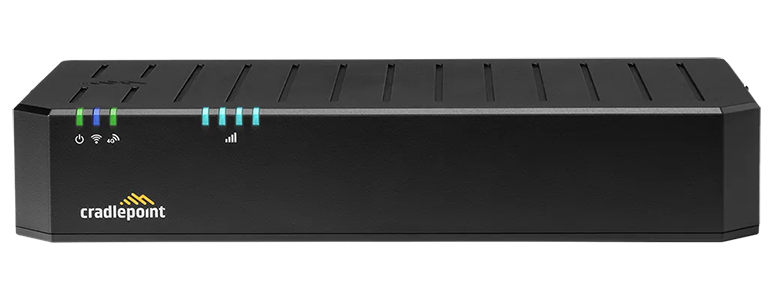

Cradlepoint E100 Series Enterprise Router
Connects remote workers for Small Office/Home Office using a dedicated secure network and optional battery backup

Cradlepoint E100 Series Enterprise Router

Cradlepoint Products
NetCloud SOHO Branch Plans with E100 CAT 4 Modem
NetCloud SOHO Branch Essentials Plan and E100 Router with Wi-Fi (150 Mbps modem), 3 years
#BH03-0100C4D-NN
Our Price: $754.00
NetCloud SOHO Branch Essentials Plan and E100 Router with Wi-Fi (150 Mbps modem), 5 years
#BH05-0100C4D-NN
Our Price: $1,179.00
NetCloud SOHO Branch Essentials Plan, Advanced Plan, and E100 Router with Wi-Fi (150 Mbps modem), 3 years
#BHA3-0100C4D-NN
Our Price: $1,179.00
NetCloud SOHO Branch Essentials Plan, Advanced Plan, and E100 Router with Wi-Fi (150 Mbps modem), 5 years
#BHA5-0100C4D-NN
Our Price: $1,887.00

Click here to jump to more pricing!

Overview:

The purpose-built router

Cradlepoint endpoints provide industry-leading connectivity as well as Ethernet and Wi-Fi. These purpose-built endpoints are sold with a subscription to NetCloud Service for SOHO which provides streamlined configuration and continuous cloud, modem, and router software feature enhancements.


The Cradlepoint NetCloud Service for SOHO with the E100 Series Enterprise Router is ideally suited for enabling mission-critical employees to work from home or outside the office with the same services, security, and ease of management. The portable, compact form factor includes full-featured routing, security, traffic shaping, and Wi-Fi, making it easy to connect and maintain connectivity to the Internet for supporting crucial business applications. The embedded LTE modem means that reliable, private connectivity is always available from day one without waiting for a wired connection and without having to depend upon consumer-class, underlying networking conditions.


icon-firewall-throughput

Firewall Throughput:
850 Mbps

icon-wan-connectivity

WAN Connectivity:
Cat 7, GbE

icon-lan-connectivity

LAN Connectivity:
Wi-Fi 5, GbE

icon-firewall-throughput

Management:
NetCloud

Notable Features

  • Extend office networking capabilities to critical remote employees without compromising security or reliability.
  • Access the network or applications with an embedded LTE modem for fast, secure connectivity in the home, vacation home, or on the road.
  • Integrate into your existing network with standardsbased, dynamic routing, traffic-shaping and VPN tunnel support.
  • Define policies through centralized, cloud-based management for easy deployment at scale.
  • Use zero-touch deployment with pre-configured router and pre-inserted SIM to speed installation.
  • Segment and isolate work devices — computers, printers, and more — from household network and devices.
  • Expand working radius with secure, enterprise class Wi-Fi.

Ideal for Work from Anywhere

NetCloud Service for SOHO, combined with an E100 Series Router, provides a dedicated connection for remote, mission-critical workers and executives with a similar experience as the office network, with access to critical cloud and corporate data center applications. Instead of relying on uneven levels of household equipment, this Work from Anywhere (WFX) solution offers IT providers cloud-based management to define and distribute policies, set security parameters, isolate corporate assets, and fine-tune bandwidth considerations in a uniform, corporate-class offering that interoperates with existing network solutions.

Dedicated Enterprise Network

By using a resilient, LTE connection dedicated to the corporate functions, the E100 Series Router avoids resource and bandwidth competition with other household devices on the network. Coupled with the high-speed connection and extension of company configurations through NetCloud, this extends an office-based environment to a secure network in a home, a remote office, or on the road. Additionally, this capability permits completely segmenting and isolating work devices — computers, printers, and more — from all other streaming and digital work in the household — ensuring high performance for key applications and providing a natural layer of information protection.

Performance


Stateful Firewall Throughput*:

850 Mbps

IPS Throughput*:

250 Mbps

Application Aware Services & Analytics*:

250 Mbps

IPSec VPN Throughput*:

40 Mbps


Concurrent VPN Tunnels:

20

Concurrent Sessions (TCP):

32,000

Typical Client Count:

5



Performance testing was conducted based on requirements as defined in RFC2544 using fixed-frame 1518 byte packets. Throughput results reflect unidirectional UDP traffic with less than 1% packet loss as tested with wired connections.

Results do not reflect performance of the cellular wireless operator networks.


Features and Benefits:

Key Software Capabilities

Cradlepoint NetCloud Service for SOHO provides everything needed to connect the remote worker to their corporate applications and services they need most from virtually any location. The NetCloud Service includes cloud-based management for optimizing routing, VPN, SD-WAN, and security capabilities. The cloud capabilities include defining and applying policies, at-a-glance status insights, reports, troubleshooting, and analytics dashboards. The service includes a warranty for as long as there is an active subscription on the router, online training, live and online support, and all software and firmware updates.


Deployment Capabilities

Zero-touch deployment features allow pre-configured and pre-activated equipment to arrive on location so the employee is able to power up an E100 Series Router, locate the best cellular connection path, and instantly setup the pre-established office parameters through the NetCloud Service, upon authentication.

Cradlepoint E100 Series Router feature1


Cradlepoint IBR1700 feature4

Cloud Services

NetCloud delivers true zero-touch deployment with the ability to define and deliver policy across entire groups of endpoints. Users can create a cloud-orchestrated hub and spoke VPN network and gain insights and analytics required for rapid troubleshooting and diagnostic workflows.


Security Services

NetCloud Service includes Unified Edge security features and options to optimize an E100 Series Router to meet and scale to the security needs of distributed environments. The service includes stateful zone-based and application-aware firewall, unified threat management, and authenticated wireless connection that is fully isolated from the surrounding networks.

Cradlepoint IBR1700 feature3

Specifications:


E100 Router Specifications

Category

Small Office, Home Office (SOHO)

Cloud Management

Yes

Wireless Connectivity

LTE

5G Status

None

Form Factor

Industrial Plastic

Ethernet Ports

5 x GbE RJ45 (LAN/WAN switchable)

USB Ports

1

Serial Ports

0

Dual-Modem Support

No

Network Operator Standards

PTCRB (U.S. & Canada)

Network Operator Certifications

AT&T, Verizon

Regions

North America

Public Safety Networks

Verizon Frontline

Firewall Throughput

850 Mbps

VPN Tunnel Count

20

Wi-Fi

Dual-band, dual-concurrent; 802.11ac (Wi-Fi 5)



GNSS/GPS

1 x SMA GNSS antenna connector

PoE

No

Operating Temperature

0 °C to 40 °C (32 °F to 104 °F)

Rack Mountable

No

Private Cellular Network

Yes (C7C only)

Battery Option

Yes

Size

135 × 270 × 48 mm (5.3 × 10.6 × 1.9 in)

Weight

0.68 kg (1 lb 8 oz)


Enterprise-Class Modem Specifications

Specification E100-C4D E100-C7C
Technology Cat 4 LTE (3GPP Rel. 11)
  • Dual SIM slots, 2FF form factor
  • SIM-based auto-carrier selection
Cat 7 LTE (3GPP Rel. 11)
  • Dual SIM slots, 2FF form factor
  • SIM-based auto-carrier selection
Fallback WCDMA/UMTS/HSPA+ WCDMA/UMTS/HSPA+
Carrier Aggregation N/A Up to 2 x CA downlink, 2 x CA uplink
Peak Downlink Rates
  • LTE: 150 Mbps
  • WCDMA: 42.2 Mbps
  • LTE: 300 Mbps
  • WCDMA: 42.2 Mbps
Peak Uplink Rates
  • LTE: 50 Mbps
  • WCDMA: 5.76 Mbps
  • LTE: 150 Mbps
  • WCDMA: 5.76 Mbps
MIMO 2x2 MIMO 2x2 MIMO
QAM Up to 64 Up to 64
LTE Bands LTE FDD
  • B2, B4, B5, B12, B13, B14, B66, B71
LTE FDD
  • B2, B4, B5, B7, B12, B13, B14, B25, B26, B41, B42, B43, B48, B66, B71
WCDMA Bands B2, B4, B5 B2, B4, B5
Power LTE 23 dBm ± 1; HSPA+ 23 dBm ± 1 (typical conducted) LTE 23 dBm ± 1, DC-HSPA+ 23 dBm ± 1 (typical conducted)
Antennas SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 2, included) SMA female connectors, external 600 MHz - 6 GHz cellular paddle antennas (Qty 2, included)
GNSS/GPS Active GNSS Active GNSS
SMS Yes Yes
Regulatory FCC (U.S.), IC (Canada) FCC (U.S.), IC (Canada)
Network Operator Standards PTCRB (U.S., Canada) PTCRB (U.S., Canada)
Network Operator Certifications AT&T, Verizon* AT&T, Verizon, Bell (pending)*
Public Safety Network Certifications N/A N/A
Private Cellular Network N/A Yes, includes FCC Part 96 (CBRS Band 48)

* Cellular carriers and operators throughout the world may only require telecom industry certifications, like PTCRB or GCF, to operate on their network. Some carriers require additional testing and approval, beyond telecom certifications, to operate on their network. A carrier listed in the approvals section means Cradlepoint completed additional testing and acquired technical approval for that given carrier. Any carrier not listed may not require additional testing or approval beyond telecom industry certifications to operate on their network.


Documentation:

Download the Cradlepoint E100 Series Enterprise Router Datasheet (.PDF)
