Cradlepoint ARC CBA850
Cellular Broadband Adapter for Failover & Out-of-Band Management

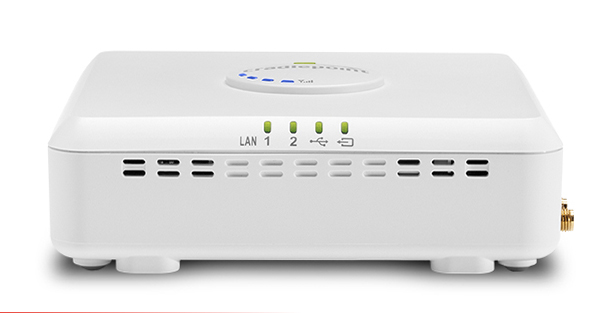

Cradlepoint ARC CBA850

Cradlepoint Products
NetCloud Essentials for Branch LTE Adapter
NetCloud Essentials for Branch LTE Adapters (Standard) with CBA850LP6, 1-yr
*1-yr NetCloud Essentials for Branch LTE Adapters (Standard) with support and CBA850 adapter (LP6 modem), North America
#BB1-0850LP6-N0N
Our Price: $579.00
NetCloud Essentials for Branch LTE Adapters (Standard) with CBA850LP6, 3-yr
*3-yr NetCloud Essentials for Branch LTE Adapters (Standard) with support and CBA850 adapter (LP6 modem), North America
#BB3-0850LP6-N0N
Our Price: $669.00
NetCloud Essentials for Branch LTE Adapters (Standard) with CBA850LP6, 5-yr
*5-yr NetCloud Essentials for Branch LTE Adapters (Standard) with support and CBA850 adapter (LP6 modem), North America
#BB5-0850LP6-N0N
Our Price: $749.00
NetCloud Essentials for Branch LTE Adapters (Standard) with CBA850LP4, 1-yr
*1-yr NetCloud Essentials for Branch LTE Adapters (Standard) with support and CBA850 adapter (LP4 modem), North America
#BB1-0850LP4-N0N
Our Price: $479.00
NetCloud Essentials for Branch LTE Adapters (Standard) with CBA850LP4, 3-yr
*3-yr NetCloud Essentials for Branch LTE Adapters (Standard) with support and CBA850 adapter (LP4 modem), North America
#BB3-0850LP4-N0N
Our Price: $569.00
NetCloud Essentials for Branch LTE Adapters (Standard) with CBA850LP4, 5-yr
*5-yr NetCloud Essentials for Branch LTE Adapters (Standard) with support and CBA850 adapter (LP4 modem), North America
#BB5-0850LP4-N0N
Our Price: $649.00
NetCloud Essentials for Branch LTE Adapters (Standard) with CBA850LPE, 1-yr
*1-yr NetCloud Essentials for Branch LTE Adapters (Standard) with support and CBA850 adapter (LPE modem, ships with VZ firmware), North America
#BB1-0850LPE-V0N
Our Price: $579.00
NetCloud Essentials for Branch LTE Adapters (Standard) with CBA850LPE, 3-yr
*3-yr NetCloud Essentials for Branch LTE Adapters (Standard) with support and CBA850 adapter (LPE modem, ships with VZ firmware), North America
#BB3-0850LPE-V0N
Our Price: $669.00
NetCloud Essentials for Branch LTE Adapters (Standard) with CBA850LPE, 5-yr
*5-yr NetCloud Essentials for Branch LTE Adapters (Standard) with support and CBA850 adapter (LPE modem, ships with VZ firmware), North America
#BB5-0850LPE-V0N
Our Price: $749.00

Click here to jump to more pricing!

Overview:

Ideal for Failover and Out-of-Band Management

Ideal for Failover and

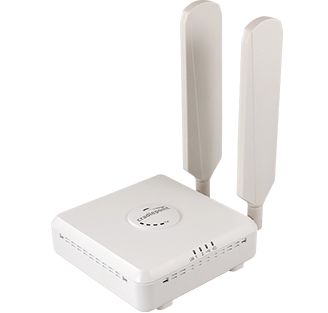

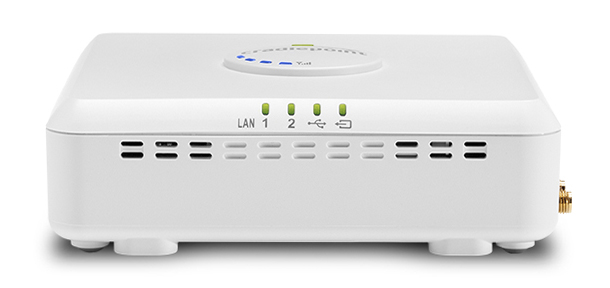

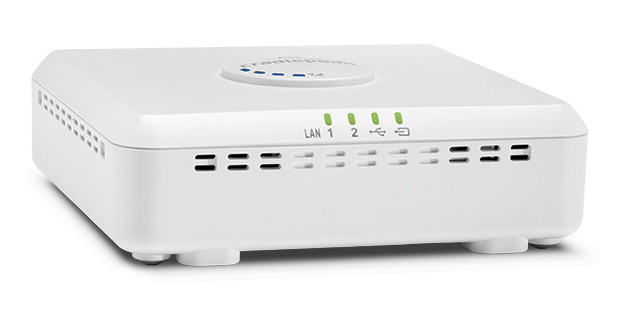

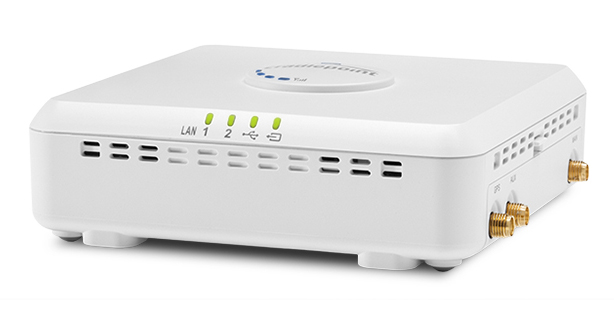

The Cradlepoint ARC CBA850 is a turnkey networking solution for best-in-class 3G/4G/LTE failover that integrates seamlessly with existing network infrastructure. Using cloud secure access, the ARC CBA850 provides the ability to extend management capability to any primary router outof-band without a static IP.** Equipped with Power-overEthernet for flexible, unobtrusive placement anywhere to optimize cellular reception, this powerful solution reduces truck rolls, consolidates infrastructure, and maximizes uptime for businesses that require always-on connectivity.

Using Enterprise Cloud Manager, network administrators have the ability to configure, monitor, and manage their deployments through the cloud. Defining the industry standard for reliability in cellular routing, the cloudmanaged ARC CBA850 empowers administrators to maximize infrastructure investments with a high-speed, automatic secondary path to access and control the network at remote locations when connectivity is lost or even if the primary router goes down.

  • Plug-and-play overlay failover
  • Cloud-managed
  • Integrated 3G/4G/LTE
  • Integrated Multi-Carrier Software-Defined Radio
  • Out-of-Band Management
  • Power-over-Ethernet (PoE)
  • External antenna options
  • IPv6 support
  • RJ45 serial console port for direct out-of-band management
  • Next Generation Out-of-Band Management
    • Secure cloud access
    • No static IP required, even during an outage
    • 4G LTE connectivity
    • Combined with best-in-class 3G/4G/LTE to Ethernet Bridge
    • Adaptive to any networking environment (e.g. Cisco, Juniper, etc.)

**No static IP or SSH required with Enterprise Cloud Manager PRIME

Benefits:

Best-In-Class Business Continuity

  • Supports LTE Advanced (LP6, LP5 versions only)
  • Multi-carrier 4G LTE support with dual SIM capability
  • High-speed 4G LTE for the most demanding applications
  • Access primary router CLI Out-of-Band to avoid costly truck rolls
  • Maximize revenue and protect your brand from downtime

Manage Remotely

  • Robust analytics to manage performance, data, and usage
  • Configure, monitor, and manage remotely
  • Create real-time alerts to monitor network availability

Deploy Quickly, Scale, and Lower Installation Costs

  • SIM-based auto-carrier selection (LP6, LP5, LP4 versions only)
  • Increase speed to deployment with “zero-touch” configuration
  • Integrates easily with existing infrastructure for turnkey networking failover

Secure & Protect

  • Virtual Server/Port Forwarding, IPv6
  • Designed for PCI 3.0 compliant network architectures

Specifications:


Cradlepoint ARC CBA850 Series Specifications
Technical Specifications
WAN
  • LP6: LTE Advanced LTE/HSPA+ (SIM-based Auto-Carrier Selection for all North American carriers and European operators)
  • LP5: LTE Advanced LTE (SIM-based Auto-Carrier Selection for Asia Pacific and Saudi Arabia operators)
  • LP4: LTE/DC-HSPA+ for AT&T, Verizon, T-Mobile, and Canadian carriers (SIM-based Auto-Carrier Selection)
  • LPE: 4G LTE/HSPA+/EVDO (multi-carrier, North America)
  • LP3: 4G LTE/HSPA+ (Europe, EMEA, and Australia/New Zealand)
  • Advanced Modem Failure Check
  • IP Passthrough
  • Standby
  • Ethernet WAN for inline failover
LAN
  • Two LAN 10/100/1000 Ethernet ports (default one NAT, one IP Passthrough)
  • RJ45 Serial Port for console access or Out-of-Band Management
  • VLAN 802.1Q
  • DHCP Server, Client, Relay
  • DNS and DNS Proxy
  • DynDNS
  • UPnP
  • DMZ
  • MAC Address Filtering

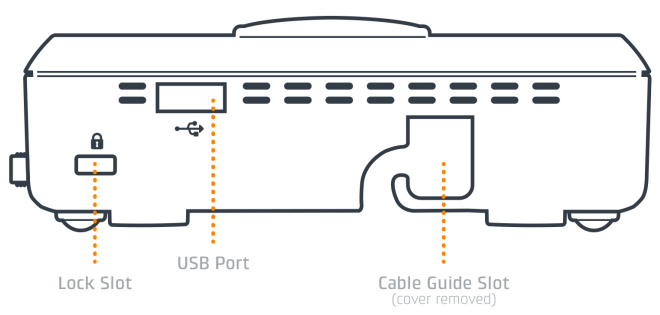

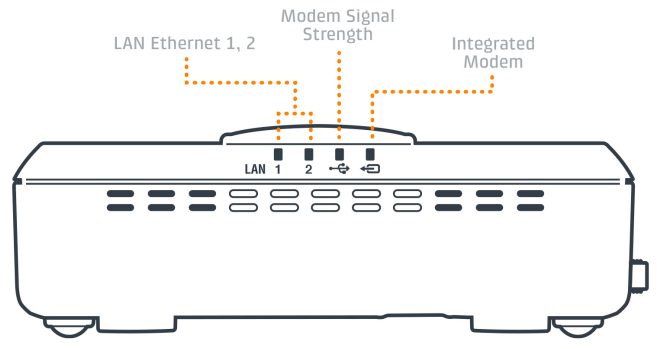

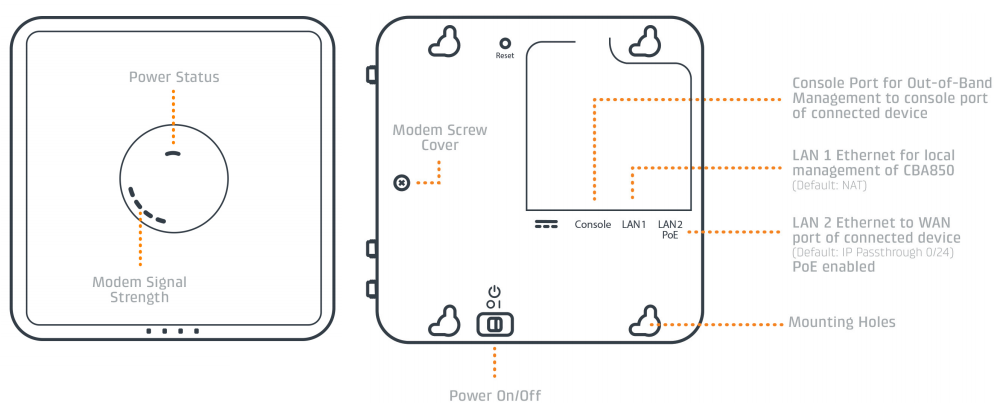

Ports and Buttons

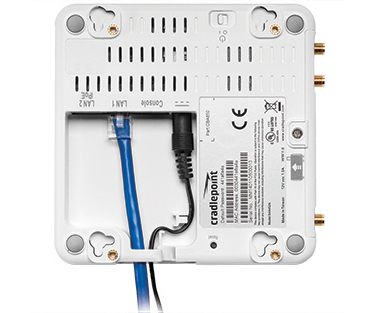

  • 12 V DC Power
  • Two 10/100/1000 Ethernet LAN
  • RJ45 Serial

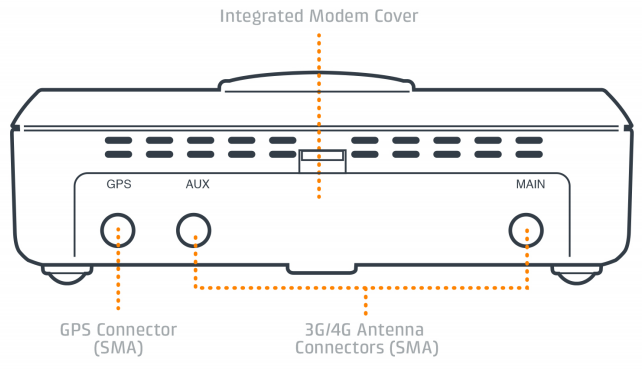

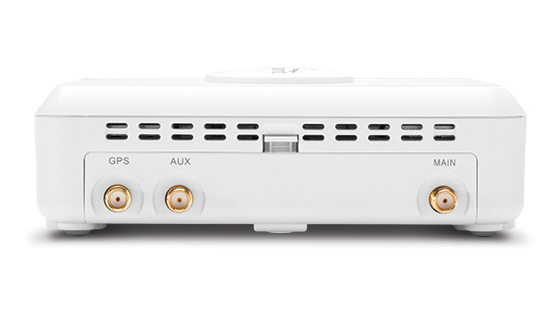

  • Two cellular antenna connectors (SMA)
  • GPS antenna connector (SMA)
  • Lock compatible

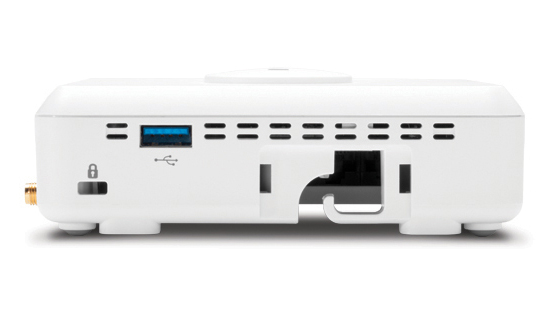

  • External USB port for USB modem and/or firmware updates
  • Cable Guide Slot
  • Factory Reset
Temperature
  • 0 °C to 50 °C (32 °F to 122 °F) operating
  • −20 °C to 70 °C (−4 °F to 158 °F) storage
Humidity (non-condensing)
  • 10% to 85% operating non-condensing
  • 5% to 90% storage non-condensing
Power
  • 12 V DC / 1.5 A adapter
  • 802.3af (15 W) or 802.3at (30 W) PoE capable
Size 4.8 in × 4.8 in × 1.7 in (122 mm × 122 mm × 42 mm)
Housing
  • White plastic, locking compatible
  • Wall, desk, or DIN Rail mounting
Certifiication
  • FCC, CE, IC
  • Safety: UL/CUL/CB Scheme
  • Materials: WEEE, RoHS, RoHS-2, California Prop 65
Specific Features
Management
  • Cradlepoint Enterprise Cloud Manager1
  • Web UI, API, CLI
  • Data Usage Alerts (router and per client)
  • Advanced Troubleshooting (support)
  • Device Alerts
  • SNMP
  • SMS control
Routing
  • Routing Rules
  • NAT-less Routing
  • Virtual Server/Port Forwarding
  • IPv6
Security
  • RADIUS and TACACS+ support2
  • 802.1x authentication for Ethernet
  • ALGs
  • MAC Address Filtering
  • Advanced Security Mode (local user management only)
  • Per-Client Web Filtering
  • IP Filtering
  • Content Filtering (basic)
  • Website Filtering
What's In The Box
What's In The Box
  • CBA850 with integrated MC400 Multi-Carrier Software-Defined Radio modem
  • Universal 3G/4G/LTE antennas with dedicated active GPS antenna port
  • 12 V DC / 1.5 A power adapter (1.5 meter cord)
  • Ethernet cable
  • Quick Start Guide
  • Mounting hardware
  • Warranty and regulatory information
Support and Warranty
Support and Warranty
  • CradleCare Support available with technical support, software upgrades, and advanced hardware exchange – 1-, 3-, and 5-year options
  • One-year limited hardware warranty available in the US and Canada – extend warranty to 2, 3, or 5 years
Router Accessories
Accessories
  • 700 MHz – 2700 MHz Wide Band Directional Antenna (Yagi/Log- Periodic) (Part #: 170588-000)
  • 12” Mag-Mount Antenna with SMA Male Connector (Part #: 170605-000)
  • 4” Mini Mag-Mount Antenna with SMA Male Connector (Part #: 170606-000)
  • Universal 3G/4G/LTE Modem Antenna (Part #: 170649-000)
  • GPS Screw-Mount Antenna (Part #: 170651-000)
  • GPS Mag-Mount Antenna (Part #: 170652-000)
  • Universal 3G/4G multi-band cellular modem antenna (white) – 2 dBi / 3 dBi (Part # 170659-000)
  • Multi-Band Omni-Directional Antenna (Part #: 170668-000)
  • Indoor/Outdoor Panel Patch (Part #: 170669-000)
  • DIN Rail Mounting Bracket (Part # 170656-000)
  • Wall/Ceiling Mounting Bracket (Part # 170666-000)
  • Rollover Adapter for RJ45 Ethernet cable M/F (Part # 170662-000)
  • RJ45 Rollover serial console cable 7 ft (Part # 170663-000)
  • RJ45 Rollover serial console cable 14 ft (Part # 170663-001)

1 Enterprise Cloud Manager requires a subscription
2 Native support for authentication. Authorization and accounting support through

Business-Grade Modem Specifications:


ARC CBA850 LP6 models include an integrated LTE Advanced Category 6 4G LTE modem. The LP6 modems support SIM-Based Auto-Carrier selection so there is only one model for all of North America. Simply insert the SIM and wait for the router to automatically detect the SIM and establish a connection. The LTE bands certified for each carrier are listed below.

ARC CBA850LP6-NA, CBA850LP6-EU

  • Technology: LTE Advanced, HSPA+
  • Downlink Rates: LTE 300 Mbps, HSPA+ 42.2 Mbps
  • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps
  • Frequency Bands:
    • LTE Bands 1–5, 7, 8, 12, 13, 17, 20, 25, 26, 29, 30, 41
      • Verizon: 2, 4, 5, 13 (XLTE support w/carrier aggregation)
      • AT&T: 2, 4, 5, 12/17, 29, 30
      • Sprint: 25, 26, 41 (LTE Plus Support)
      • T-Mobile: 2, 4, 12 (T-Mobile Wideband LTE Support)
      • Generic: all
  • Carrier Aggregation:
    • 1+ 8
    • 2+ 2/5/12 (17 w/MFBI)/13/29
    • 3+ 7/20
    • 4+ 4/5/12 (17 w/MFBI)/13/29
    • 5+ 2/4/30
    • 7+ 3/7/20
    • 8+ 1
    • 12 (17 w/MFBI) + 2/4/30
    • 13+ 2/4
    • 20+ 3/7
    • 30+ 5/12 (17 w/MFBI)
    • 41+ 41
  • Fallback: WCDMA/DC-HSPA+ (42/5.76 Mbps): Bands 1, 2, 3, 4, 5, 8
  • Power: LTE: 23 dBm ± 1; HSPA+: 23 dBm ± 1
  • Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf/cm2)
  • GPS: active GPS support
  • SMS: SMS support
  • Industry Standards & Certs: CE, FCC, GCF-CC, IC, PTCRB, AT&T, Sprint, Verizon
  • Modem Part Number: MC400LP6

ARC CBA850 LP5 models include an integrated LTE Advanced Category 6 4G LTE modem, and support Asia Pacific and Saudi Arabia. The LP5 modems support SIM-Based Auto-Carrier selection. Simply insert the SIM and wait for the router to automatically detect the SIM and establish a connection.

ARC CBA850LP5-AP

  • Technology: FDD/TDD (Category 6) LTE Advanced, DC-HSPA+
  • Downlink Rates: LTE 300 Mbps, HSPA+ 42.2 Mbps
  • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps
  • Frequency Bands:
    • LTE Bands: 1, 3, 5, 7, 8, 11, 18, 19, 21, 28, 38, 39, 40, 41
    • TD-SCDMA 39
  • Carrier Aggregation:
    • 1+ (8, 18, 19, 21)
    • 3+ (5, 7, 19, 28)
    • 7+ (5, 7, 28)
    • 19+ 21
    • 38+ 38
    • 39+ 39
    • 40+ 40
    • 41+ 41
  • Fallback: WCDMA/DC-HSPA+ (42/5.76 Mbps): Bands 1, 5, 6, 8, 9, 19
  • Power: LTE: 23 dBm ± 1; HSPA+: 23 dBm ± 1
  • Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf/cm2)
  • GPS: active GPS support
  • SMS: SMS support
  • Industry Standards & Certs: CE, GCF-CC, RC Australia, others pending
  • Modem Part Number: MC400LP5

ARC CBA850 LP4 models include an embedded LTE Advanced Category 4 4G LTE modem. The LP4 modems support SIM-Based Auto-Carrier selection so there is only one model for North America. Simply insert the SIM and wait for the router to automatically detect the SIM and establish a connection.

CBA850LP4

  • Technology: Category 4 LTE, DC-HSPA+
  • Downlink Rates: LTE 150 Mbps, DC-HSPA+ 42.2 Mbps
  • Uplink Rates: LTE 50 Mbps, DC-HSPA+ 5.76 Mbps
  • Frequency Bands:
    • LTE: Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz)
    • DC-HSPA+/UMTS Rel. 9, Cat 24: Bands 5 and 2 (850/1900 MHz)
  • Power: LTE: 23 dBm ± 1; DC-HSPA+: 23 dBm ± 1
  • Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf/cm2)
  • Industry Standards & Certs: FCC, Verizon, AT&T, PTCRB, carrier Private Networks, IC
  • SIM: two 2FF slots (secured)
  • Modem Part Number: MC400LP4


ARC CBA850 models include an integrated 4G LTE modem – specific model names include a specific modem (e.g., the ARC CBA850LPE-VZ includes a Verizon LTE modem).

Please note that LPE models are flexible and support bands for multiple cellular providers; however, only the frequency bands in bold below are supported by the listed provider.

ARC CBA850LPE-VZ – 4G LTE/EVDO for Verizon

  • Technology: LTE, EVDO Rev A
  • Downlink Rates: LTE 100 Mbps, EVDO 3.1 Mbps (theoretical)
  • Uplink Rates: LTE 50 Mbps, EVDO 1.8 Mbps (theoretical)
  • Frequency Bands:
    • LTE: Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
    • GSM/GPRS/EDGE: (850/900/1800/1900 MHz)
    • CDMA: EVDO Rev A/1xRTT (800/1900 MHz)
  • Power: LTE: 23 dBm ± 1; EVDO: 24 dBm +0.5/-1 (typical conducted)
  • Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi (Cellular/PCS) gain; finger tighten only (maximum torque spec is 7 kgf/cm2)
  • GPS: active GPS support
  • Industry Standards & Certs: FCC, Verizon
  • SIM: two 2FF SIM slots
  • Modem Part Number: MC400LPE

ARC CBA850LPE-AT – 4G LTE/HSPA+/EVDO for AT&T

  • Technology: LTE, HSPA+, EVDO Rev A
  • Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
  • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
  • Frequency Bands:
    • LTE: Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
    • HSPA+/UMTS: (850/900/1900/2100 MHz, AWS)
    • GSM/GPRS/EDGE: (850/900/1800/1900 MHz)
    • CDMA: EVDO Rev A/1xRTT (800/1900 MHz)
  • Power: LTE: 23 dBm ± 1; HSPA+: 23 dBm ± 1; EVDO: 24 dBm +0.5/−1 (typical conducted)
  • Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi (Cellular/PCS) gain; finger tighten only (maximum torque spec is 7 kgf/cm2)
  • GPS: active GPS support
  • Industry Standards & Certs: PTCRB, FCC, IC, AT&T
  • SIM: two 2FF SIM slots
  • Modem Part Number: MC400LPE

ARC CBA850LPE-SP – 4G LTE/HSPA+/EVDO for Sprint

  • Technology: LTE, HSPA+, EVDO Rev A
  • Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
  • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
  • Frequency Bands:
    • LTE: Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
    • HSPA+/UMTS: (850/900/1900/2100 MHz, AWS)
    • GSM/GPRS/EDGE: (850/900/1800/1900 MHz)
    • CDMA: EVDO Rev A/1xRTT (800/1900 MHz)
  • Power: LTE: 23 dBm ± 1; HSPA+: 23 dBm ± 1; EVDO: 24 dBm +0.5/-1 (typical conducted)
  • Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi (Cellular/PCS) gain; finger tighten only (maximum torque spec is 7 kgf/cm2)
  • GPS: active GPS support
  • Industry Standards & Certs: FCC, Sprint
  • SIM: two 2FF SIM slots
  • Modem Part Number: MC400LPE

ARC CBA850LP3-EU – 4G LTE/HSPA+ for Europe

  • Technology: LTE, HSPA+, EVDO Rev A
  • Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
  • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
  • Frequency Bands:
    • LTE Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
    • HSPA+/UMTS (850/900/1900/2100 MHz, AWS)
    • GSM/GPRS/EDGE (850/900/1800/1900 MHz)
    • CDMA EVDO Rev A/1xRTT (800/1900 MHz)
  • Power: LTE: 23 dBm ± 1; HSPA+: 23 dBm ± 1; EVDO: 24 dBm +0.5/−1 (typical conducted)
  • Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi (Cellular/PCS) gain; finger tighten only (maximum torque spec is 7 kgf/cm2)
  • GPS: active GPS support
  • Industry Standards & Certs: FCC, Verizon

ARC CBA850LPE-GN – 4G LTE/HSPA+/EVDO (generic – for use on T-Mobile and US Cellular in the U.S. and Rogers, Bell, & TELUS in Canada)

  • Technology: LTE, HSPA+, EVDO Rev A
  • Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
  • Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
  • Frequency Bands:
    • LTE Band 2 (1900 MHz)Band 4 – AWS (1700/2100 MHz)Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
    • HSPA+/UMTS (850/900/1900/2100 MHz, AWS)
    • GSM/GPRS/EDGE (850/900/1800/1900 MHz)
    • CDMA EVDO Rev A/1xRTT (800/1900 MHz)
  • Power: LTE: 23 dBm ± 1; HSPA+: 23 dBm ± 1; EVDO: 24 dBm +0.5/−1 (typical conducted)
  • Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi (Cellular/PCS) gain; finger tighten only (maximum torque spec is 7 kgf/cm2)
  • GPS: active GPS support
  • Industry Standards & Certs: PTCRB, FCC, IC, AT&T


Below is a list of carrier-supplied modems compatible with the CBA850.

AT&T

  • USB
    • Cradlepoint MC400LPE-AT
    • Cradlepoint MC400LP4
    • Cradlepoint MC400LP6
    • Sierra Wireless AirCard 340U [Beam]

Band 14 Public Safety LTE

  • USB
    • Cradlepoint MC400L2

Bell Mobility (CA)

  • USB
    • Cradlepoint MC400LPE-GN
    • Cradlepoint MC400LP4
    • Cradlepoint MC400LP6
    • Novatel Wireless U679

POTS (Analog)

  • USB
    • Portsmith PSA1U1M

Rogers (CA)

  • USB
    • Cradlepoint MC400LPE-GN
    • Cradlepoint MC400LP4
    • Cradlepoint MC400LP6
    • Sierra Wireless 330U [LTE Rocket Stick]

Sprint

  • USB
    • Cradlepoint MC400LP6
    • Cradlepoint MC400LPE-SP
    • Franklin Wireless U600
    • Franklin Wireless U770 [Plug-in-Connect Tri-Mode USB]
    • Franklin Wireless U772 [Franklin U772 Smart USB Modem]
    • NETGEAR 341U

T-Mobile (USA)

  • USB
    • Cradlepoint MC400LP6
    • Cradlepoint MC400LP4
    • Cradlepoint MC400LPE-GN
    • ZTE MF683 [Rocket 3.0]

Telstra/BigPond (AU)

  • USB
    • Sierra Wireless AirCard 320U

TELUS (CA)

  • USB
    • Cradlepoint MC400LPE-GN
    • Cradlepoint MC400LP4
    • Cradlepoint MC400LP6
    • Huawei E3276

Verizon

  • USB
    • Cradlepoint MC400LPE-VZ
    • Cradlepoint MC400LP4
    • Cradlepoint MC400LP6
    • Novatel Wireless Ovation MC551 [ 551L 4G LTE USB Modem]
    • Novatel Wireless U620L [MiFi 4G LTE Global USB Modem U620L]
    • Pantech UML295

Hardware Specifications:

Cradlepoint CBA850 Front Specificaitons

Cradlepoint CBA850 Left Side Specificaitons

Cradlepoint CBA850 Right Side Specificaitons

Cradlepoint Top & Bottom Specificaitons

Software:

Cradlepoint’s NetCloud

Cloud Networking for Branch Office, Retail, and More

Cradlepoint’s NetCloud platform includes an industryleading router operating system, an award-winning management platform optimized for cellular, and virtual private cloud networking. When combined with Cradlepoint routers, this integrated platform of flexible, extensible, and rapidly deployable applications enables an entirely new way to easily build, secure, control, and manage end-to-end private networks in the cloud.

NetCloud OS

Firewall, Advanced Routing-Optimized for LTE
NetCloud OS is the heart of our industry-leading LTE routers. Sustained commitment to new features and capabilities ensures your network is always up to date and secure.

NetCloud Manager

Quickly Deploy, Manage & Monitor Your Network
NetCloud Manager is a cloud management service that enables zero-touch deployment, remote management, alerting, and network analytics for all Cradlepoint routers.

NetCloud Engine

Software-Defined. Security-Driven. Cloud-Delivered.
NetCloud Engine leverages SoftwareDefined Networking (SDN) to instantly create secure Virtual Cloud Networks over more cost-effective wired and wireless broadband Internet services.

Security Applications

Enhance network security with best-in-class applications from Cradlepoint Technology Partners. Create, deploy, and manage network security applications at remote locations with the Cradlepoint NetCloud platform. Improve productivity, reduce costs, and enhance the security intelligence of your network.

Zscaler Internet SecurityZscaler Internet Security

Configured in minutes, best-inclass Zscaler Internet Security protects your organization from web-based threats.

CP Secure Threat ManagementCP Secure Threat Management

A comprehensive intrusion prevention and detection system (IPS/IDS) for full defense-in-depth.


CradleCare Support:

CradleCare SupportFrom initial device deployment to long-term operations, Cradlepoint Global Support offers world-class resources and expertise to keep your network secure, simple and efficient. Cradlepoint offers multiple tiers of support to provide you exactly what you need.

With Cradlepoint Global Support and CradleCare, you can:

  • Maximize revenue through always-on uptime and response times
  • Save time with our web-based Connect Portal and Knowledge Base
  • Collaborate with our multi-certified technical team
  • Maintain PCI Compliance with up-to-date router and modem firmware

The following chart provides an overview of Cradlepoint's support and maintenance offerings:

Included with every Cradlepoint purchase CradleCare Basic CradleCare

Web-based Cradlepoint Connect Portal:

  • 24x7x365 access to our Knowledge Base and Firmware download library
  • 12x5 email support (for Enterprise Cloud Manager and NetCloud Gateway only)
  • Knowledge Base access
  • Firmware upgrades
  • Standard warranty with extended warranty options

Included +

  • Covers all products and services
  • 12x5 phone, email and chat support for Cradlepoint routers, ECM and NetCloud Gateway
  • Knowledge Base access
  • Firmware upgrades
  • Standard warranty with extended warranty options

CradleCare Basic +

  • 24x7 qualified phone support and 12x5 email/chat support for Cradlepoint routers, ECM and NetCloud Gateway
  • Advanced Exchange: Next business day replacement
  • Service level targets
  • Assigned Enterprise Support Engineer (for deployments of 50 routers or more)
  • Enterprise engineering resources for network design and best practices implementation
  • Priority consideration of future feature requests and beta trials
  • Knowledge Base access
  • Firmware upgrades
  • Extended Warranty for routers for the term of CradleCare license

Extended Warranties

Extended Warranties can be purchased in subsequent years, and as a follow-on warranty at the conclusion of the standard warranty period. No gap in coverage is allowed: the new warranty must be in place before the existing warranty expires.

Standard One-Year Warranty (With Extended Warranty Option) Includes:

  • Access to Cradlepoint Connect portal and Knowledge Base
  • Hardware repair/replacement with 3-5 day shipping
  • Software bug fixes
  • An option to extend your warranty to 2, 3, or 5 years at the conclusion of the standard warranty period*

*Hardware warranties cannot be extended beyond 5 years from the date of purchase.

Documentation:

Download the Cradlepoint ARC CBA850 Datasheet (.PDF)

Download the Cradlepoint ARC CBA850 Spec Sheet (.PDF)

Pricing Note:

NetCloud Essentials for Branch LTE Adapter
NetCloud Essentials for Branch LTE Adapters (Standard) with CBA850LP6, 1-yr
*1-yr NetCloud Essentials for Branch LTE Adapters (Standard) with support and CBA850 adapter (LP6 modem), North America
#BB1-0850LP6-N0N
Our Price: $579.00
NetCloud Essentials for Branch LTE Adapters (Standard) with CBA850LP6, 3-yr
*3-yr NetCloud Essentials for Branch LTE Adapters (Standard) with support and CBA850 adapter (LP6 modem), North America
#BB3-0850LP6-N0N
Our Price: $669.00
NetCloud Essentials for Branch LTE Adapters (Standard) with CBA850LP6, 5-yr
*5-yr NetCloud Essentials for Branch LTE Adapters (Standard) with support and CBA850 adapter (LP6 modem), North America
#BB5-0850LP6-N0N
Our Price: $749.00
NetCloud Essentials for Branch LTE Adapters (Standard) with CBA850LP4, 1-yr
*1-yr NetCloud Essentials for Branch LTE Adapters (Standard) with support and CBA850 adapter (LP4 modem), North America
#BB1-0850LP4-N0N
Our Price: $479.00
NetCloud Essentials for Branch LTE Adapters (Standard) with CBA850LP4, 3-yr
*3-yr NetCloud Essentials for Branch LTE Adapters (Standard) with support and CBA850 adapter (LP4 modem), North America
#BB3-0850LP4-N0N
Our Price: $569.00
NetCloud Essentials for Branch LTE Adapters (Standard) with CBA850LP4, 5-yr
*5-yr NetCloud Essentials for Branch LTE Adapters (Standard) with support and CBA850 adapter (LP4 modem), North America
#BB5-0850LP4-N0N
Our Price: $649.00
NetCloud Essentials for Branch LTE Adapters (Standard) with CBA850LPE, 1-yr
*1-yr NetCloud Essentials for Branch LTE Adapters (Standard) with support and CBA850 adapter (LPE modem, ships with VZ firmware), North America
#BB1-0850LPE-V0N
Our Price: $579.00
NetCloud Essentials for Branch LTE Adapters (Standard) with CBA850LPE, 3-yr
*3-yr NetCloud Essentials for Branch LTE Adapters (Standard) with support and CBA850 adapter (LPE modem, ships with VZ firmware), North America
#BB3-0850LPE-V0N
Our Price: $669.00
NetCloud Essentials for Branch LTE Adapters (Standard) with CBA850LPE, 5-yr
*5-yr NetCloud Essentials for Branch LTE Adapters (Standard) with support and CBA850 adapter (LPE modem, ships with VZ firmware), North America
#BB5-0850LPE-V0N
Our Price: $749.00
