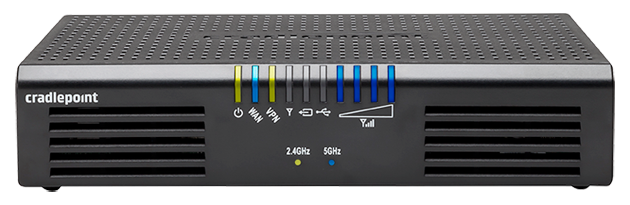

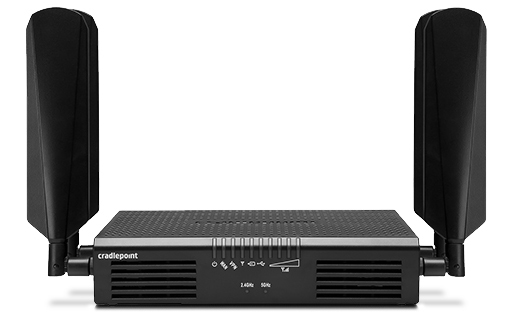

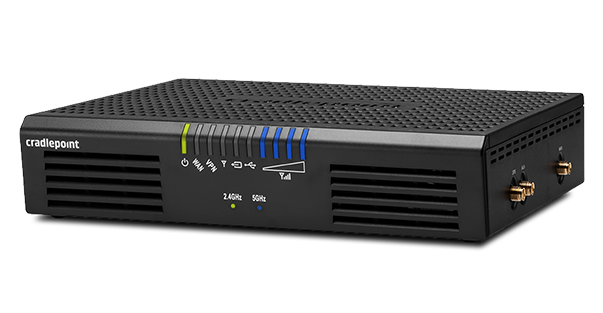

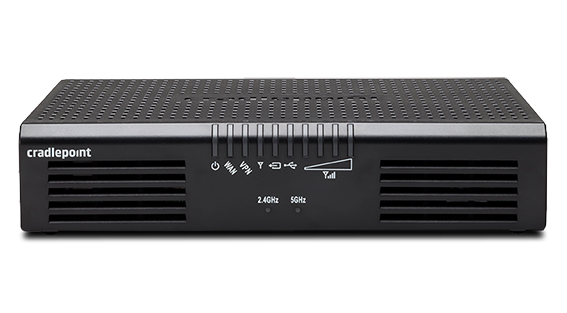

Cradlepoint AER1600
Advanced Edge Routing with WiFi for Branch Primary and Application-Specific Networking
Sorry, this product is no longer available, please contact us for a replacement.
Click here to jump to more pricing!
Overview:
Ideal for Primary and Application Specific Branch Networking
The Cradlepoint AER1600 is designed for the distributed enterprise to intelligently manage converged wired and wireless connectivity for a highly available “connected experience” at the Edge. Ideal for temporary and micro branch networks, this Advanced Edge Routing solution combines cloud management, advanced security (UTM), WAN Diversity, industry-leading 4G LTE failover, high-performance WiFi, and dual modem capabilities for deployment versatility when wired lines are too costly or unavailable.
- Supports LTE Advanced
- Cloud-managed
- Dual-band, dual concurrent WiFi (802.11 a/b/g/n/ac)
- Dual modem / MultiCarrier Support

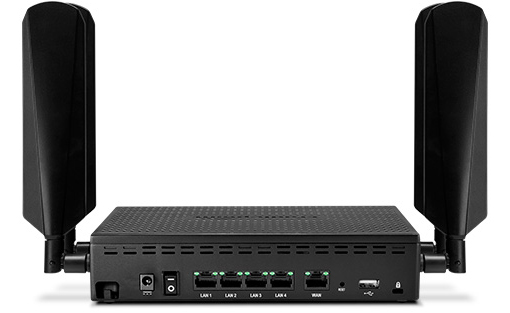

- Ports: 1 GigE WAN/4 GigE LAN (switchable)
- WWAN analytics
- Industry-leading 4G failover
- Unified Threat Management
- Software-defined radio (supports multiple carriers)
- Purpose-built for PCI Compliance 3.1
Advanced Edge Routing for the Agile, Connected Enterprise
Wired and LTE Wireless Routing Platforms for Branch Office, Retail, and More
The Cradlepoint AER Series of advanced edge routing platforms combines enterprise routing, multi-WAN support—wired plus 4G wireless, SD-WAN capabilities, advanced security, private network support, and high-performance WiFi in a series of routers that can be deployed, managed, and optimized via the cloud.
With the combination of Cradlepoint AER routers and NetCloud software and services, administrators can define, deploy, and manage branch networks on a highly capable solution platform that is customizable and lowers the total cost of ownership.
Applications:
- Branch office networks
- Wired and wireless WAN, WiFi, and failover
- M2M / IoT for branch office
- Kiosks, cameras, and sensors
- Transactions and security
- Failover networks
- Easy overlay for existing networks
- Out-of-Band Management
- Specialty networks
- Pop-up store and events
- Connect anywhere
All-in-One Features:
- Cloud-managed with NetCloud platform
- WAN Diversity: wired and wireless for backup and bandwidth, or all wireless
- Dual-modem and multi-carrier support
- Industry-leading 4G failover and Out-of-Band Management
- Cloud-enabled advanced routing and security options for UTM
- Purpose-built for PCI Compliance
Benefits:
- Centralized management with proactive alerts and analytics provide peace of mind for network administrators
- Agile networks for changing environments
- Deploy and scale quickly: day 1, zero-touch Internet
- Increased availability and improved user experience (QoE)
- Additional bandwidth options with traffic control
- Built-in security, plus add-ons from best-in-class technology partners
Benefits:
Improve QoE & Increase Availability
- Supports LTE Advanced (LP6 versions only)
- Multi-carrier 4G LTE support with dual SIM capability
- Increase availability with seamless 4G failover
- Augment WAN bandwidth: 4G, Ethernet (T1, DSL, Cable, MetroE), WiFi as WAN
- Support cloud-optimized IP multimedia communications
- Robust, real-time analytics to manage QoE performance, data usage, and costs

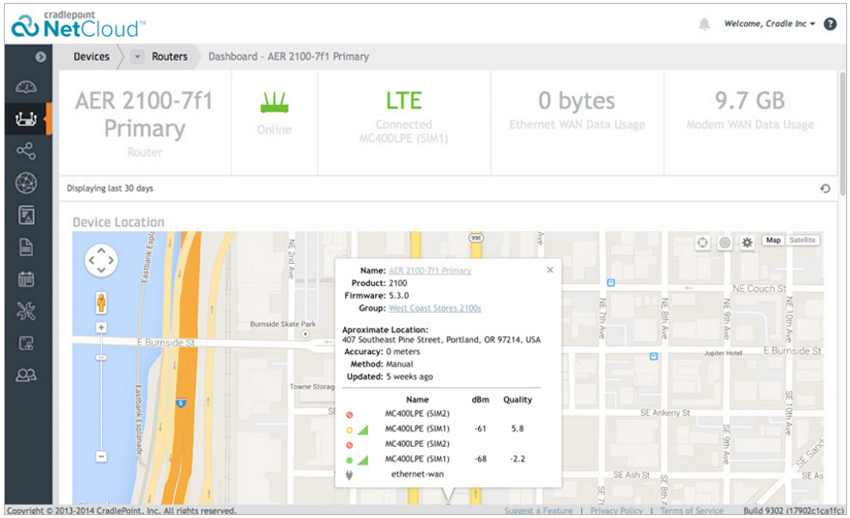

Location-based analytics
Maximize Flexibility

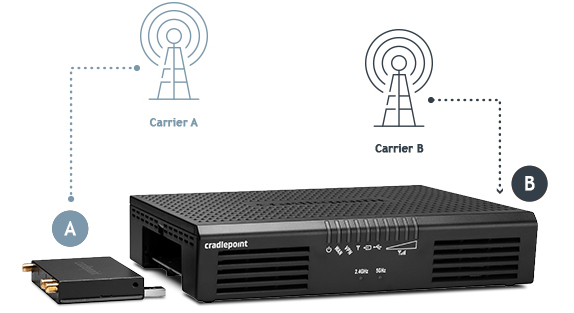

- Dual modems with multi-carrier support for “Cut-the-Wire” solution
- Add burst bandwidth easily for peak periods
- Integrate with MPLS networks for Hybrid WAN deployments
- Application-aware policies for intelligent WAN selection and data usage optimization

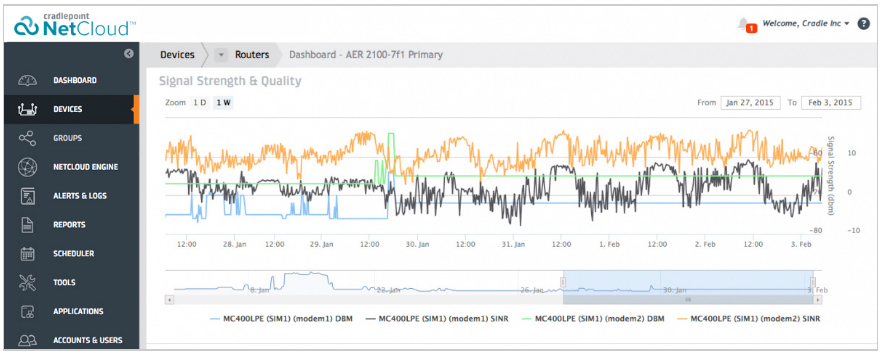

Dual modem signal strength analytics
Deploy & Scale Quickly
- SIM-based auto-carrier selection (LP6, LP4 versions only)
- Increase speed to deployment with “zero-touch” configuration at installation
- Deploy services for increased security and advanced networking via the cloud

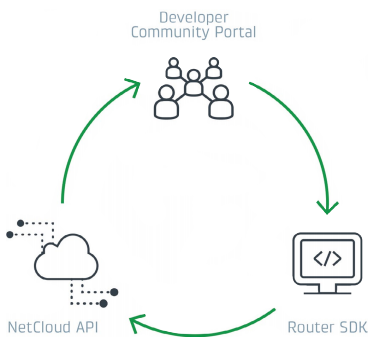

- Integrate easily with enterprise applications using Cradlepoint’s open API

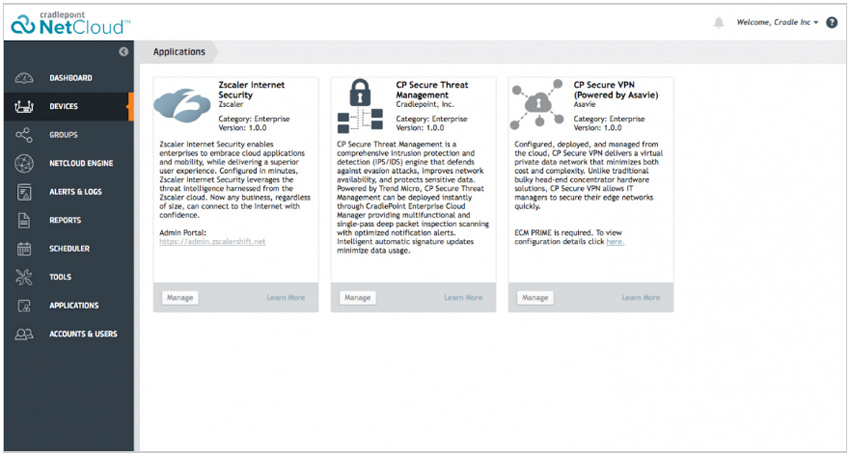

Cloud-enabled security applications

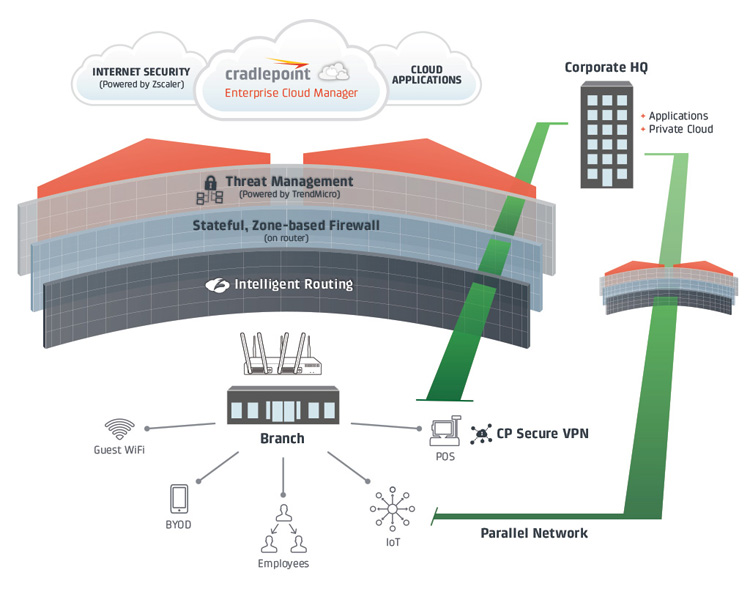

Secure & Protect
- Protect assets with IPS/IDS, stateful firewall, network segmentation, and VLAN support
- Secure data transactions with advanced VPN options
- Integrate Zscaler to inspect “direct to internet” traffic with near-zero latency
- Purpose-built for PCI Compliance

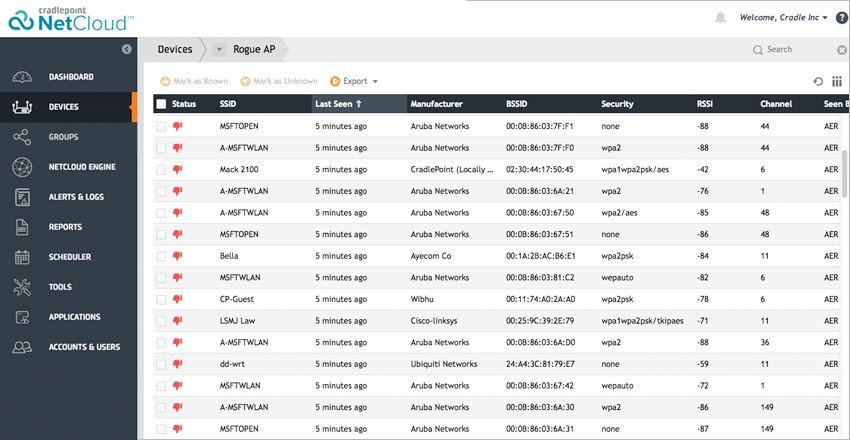

Rogue AP detection

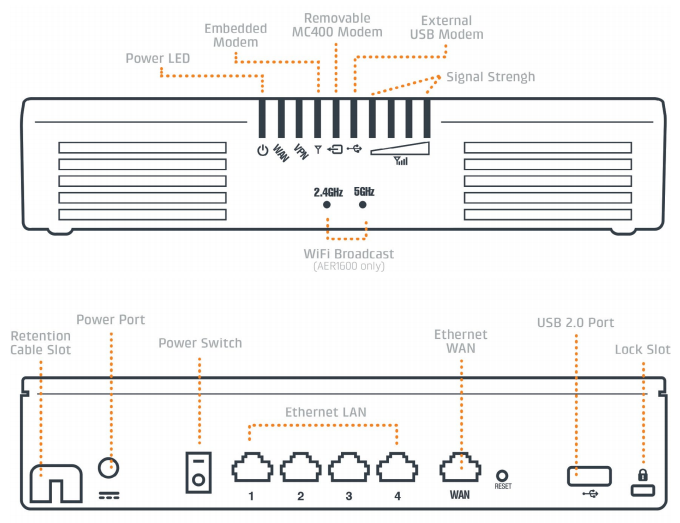

Specifications:
| Cradlepoint AER1600 / AER1650 Series Specifications | |
|---|---|
| Technical Specifications | |
| WAN |
|
| LAN |
|
| Temperature |
|
| Humidity (non-condensing) |
|
| Memory | 256 MB DRAM; 16 MB SPI Flash; 256 MB NAND Flash |
| Size |
|
| Weight | 1 lb 4.4 oz (.58 kg) |
| Certifiication | FCC, WiFi Alliance, CE, IC, carrier certifications |
| WAN to LAN | 940 Mbps |
| LAN to WAN | 947 Mbps |
| WiFi Power (FCC) |
|
| WiFi Power (Europe/Rest of World) |
|
| Power Consumption (Typical) |
|
| Specific Features | |
| Management |
|
| VPN and Routing |
|
| Security |
|
| Cloud Optimized IP Communications |
|
| What's In The Box | |
| The Cradlepoint AER1600/AER1650 is available with different modem options: |
|
| Also included: |
|
| Support and Warranty | |
| Support and Warranty |
|
| Router Accessories | |
| Accessories |
|
* Only on AER1600
1 Enterprise Cloud Manager requires a subscription
2 Requires an Extended Enterprise License or ECM PRIME
3 Native support for authentication. Authorization and accounting support through
4 Requires Zscaler Internet Security License
5 Requires a CP Secure Threat Management license
Business-Grade Modem Specifications:
AER1600/AER1650 LP6 models include an integrated LTE Advanced Category 6 4G LTE modem (AER1600/AER1650 LP6 models do not include an embedded 4G LTE modem and do not support dual-modem capability). The LP6 modems support SIM-Based Auto-Carrier selection so there is only one model for all of North America. Simply insert the SIM and wait for the router to automatically detect the SIM and establish a connection. The LTE bands certified for each carrier are listed below.
AER1600LP6-NA-M, AER1650LP6-NA-M, AER1600LP6-EU-M, AER1650LP6-EU-M
- Technology: LTE Advanced, HSPA+
- Downlink Rates: LTE 300 Mbps, HSPA+ 42.2 Mbps
- Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps
- Frequency Bands:
- LTE Bands 1-5, 7, 8, 12, 13, 17, 20, 25, 26, 29, 30, 41
- Verizon: 2, 4, 5, 13 (XLTE support w/carrier aggregation)
- AT&T: 2, 4, 5, 12/17, 29, 30
- Sprint: 25, 26, 41 (LTE Plus Support)
- T-Mobile: 2, 4, 12 (T-Mobile Wideband LTE Support)
- Generic: all
- LTE Bands 1-5, 7, 8, 12, 13, 17, 20, 25, 26, 29, 30, 41
- Carrier Aggregation:
- 1+ 8
- 2+ 2/5/12 (17 w/MFBI)/13/29
- 3+ 7/20
- 4+ 4/5/12 (17 w/MFBI)/13/29
- 5+ 2/4/30
- 7+ 3/7/20
- 8+ 1
- 12 (17 w/MFBI) + 2/4/30
- 13+ 2/4
- 20+ 3/7
- 30+ 5/12 (17 w/MFBI)
- 41+ 41
- Fallback: WCDMA/DC-HSPA+ (42/5.76 Mbps): Bands 1, 2, 3, 4, 5, 8
- Power: LTE: 23 dBm ± 1; HSPA+: 23 dBm ± 1
- Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf/cm2)
- GPS: active GPS support
- SMS: SMS support
- Industry Standards & Certs: CE, FCC, GCF-CC, IC, PTCRB, AT&T, Sprint, Verizon
- Modem Part Number: MC400LP6
AER1600/AER1650 LP5 models include an integrated LTE Advanced Category 6 4G LTE modem, and support Asia Pacific and Saudi Arabia. The LP5 modems support SIM-Based Auto-Carrier selection. Simply insert the SIM and wait for the router to automatically detect the SIM and establish a connection.
AER1600LP5-AU, AER1650LP5-AU
- Technology:FDD/TDD (Category 6) LTE Advanced, DC-HSPA+
- Downlink Rates: LTE 300 Mbps, DC-HSPA+ 42.2 Mbps
- Uplink Rates: LTE 50 Mbps, DC-HSPA+ 5.76 Mbps
- Frequency Bands:
- LTE Bands: 1, 3, 5, 7, 8, 11, 18, 19, 21, 28, 38, 39, 40, 41
- TD-SCDMA: 39
- Carrier Aggregation:
- 1+ (8, 18, 19, 21)
- 3+ (5, 7, 19, 28)
- 7+ (5, 7, 28)
- 19+ 21
- 38+ 38
- 39+ 39
- 40+ 40
- 41+ 41
- Fallback: WCDMA/DC-HSPA+ (42/5.76 Mbps): Bands 1, 5, 6, 8, 9, 19
- Power: LTE: 23 dBm ± 1; HSPA+: 23 dBm ± 1
- Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf/cm2)
- GPS: active GPS support
- SMS: SMS support
- Industry Standards & Certs: CE, GCF-CC, RC Australia, others pending
- Modem Part Number: MC400LP5
AER1600LP4, AER1650LP4
- Technology: Category 4 LTE, DC-HSPA+
- Downlink Rates: LTE 150 Mbps, DC-HSPA+ 42.2 Mbps
- Uplink Rates: LTE 50 Mbps, DC-HSPA+ 5.76 Mbps
- Frequency Bands:
- LTE: Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz)
- DC-HSPA+/UMTS Rel. 9, Cat 24: Bands 5 and 2 (850/1900 MHz)
- Power: LTE 23 dBm ± 1, DC-HSPA+ 23 dBm ± 1
- Antennas: two SMA male (plug), finger tighten only (maximum torque spec is 7 kgf/cm2)
- Industry Standards & Certs: FCC, WiFi Alliance (AER1600 only), Verizon, AT&T, PTCRB, carrier Private Networks, IC
- SIM: two 2FF slots (secured)
- Modem Part Number: MC400LP4
Some AER1600/AER1650 models include an embedded 4G LTE modem (MC400). Please note that LPE models are flexible and support bands for multiple cellular providers; however, only the frequency bands in bold below are supported by the listed provider.
AER1600LPE-VZ – 4G LTE/HSPA+/EVDO for Verizon
- Technology: LTE, HSPA+, EVDO Rev A
- Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
- Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
- Frequency Bands:
- LTE Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
- HSPA+/UMTS (850/900/1900/2100 MHz, AWS)
- GSM/GPRS/EDGE (850/900/1800/1900 MHz)
- CDMA EVDO Rev A/1xRTT (800/1900 MHz)
- Power: LTE: 23 dBm ± 1; HSPA+: 23 dBm ± 1; EVDO: 24 dBm +0.5/−1 (typical conducted)
- Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi (Cellular/PCS) gain; finger tighten only (maximum torque spec is 7 kgf/cm2)
- GPS: active GPS support
- Industry Standards & Certs: FCC, Verizon
AER1600LPE-AT – 4G LTE/HSPA+/EVDO for AT&T
- Technology: LTE, HSPA+, EVDO Rev A
- Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
- Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
- Frequency Bands:
- LTE Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
- HSPA+/UMTS (850/900/1900/2100 MHz, AWS)
- GSM/GPRS/EDGE (850/900/1800/1900 MHz)
- CDMA EVDO Rev A/1xRTT (800/1900 MHz)
- Power: LTE: 23 dBm ± 1; HSPA+: 23 dBm ± 1; EVDO: 24 dBm +0.5/−1 (typical conducted)
- Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi (Cellular/PCS) gain; finger tighten only (maximum torque spec is 7 kgf/cm2)
- GPS: active GPS support
- Industry Standards & Certs: PTCRB, FCC, IC, AT&T
AER1600LPE-SP – 4G LTE/HSPA+/EVDO for Sprint
- Technology: LTE, HSPA+, EVDO Rev A
- Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
- Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
- Frequency Bands:
- LTE Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
- HSPA+/UMTS (850/900/1900/2100 MHz, AWS)
- GSM/GPRS/EDGE (850/900/1800/1900 MHz)
- CDMA EVDO Rev A/1xRTT (800/1900 MHz)
- Power: LTE: 23 dBm ± 1; HSPA+: 23 dBm ± 1; EVDO: 24 dBm +0.5/−1 (typical conducted)
- Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi (Cellular/PCS) gain; finger tighten only (maximum torque spec is 7 kgf/cm2)
- GPS: active GPS support
- Industry Standards & Certs: FCC, Sprint
AER1650LPE-VZ – 4G LTE/HSPA+/EVDO for Verizon (non-WiFi)
- Technology: LTE, HSPA+, EVDO Rev A
- Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
- Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
- Frequency Bands:
- LTE Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
- HSPA+/UMTS (850/900/1900/2100 MHz, AWS)
- GSM/GPRS/EDGE (850/900/1800/1900 MHz)
- CDMA EVDO Rev A/1xRTT (800/1900 MHz)
- Power: LTE: 23 dBm ± 1; HSPA+: 23 dBm ± 1; EVDO: 24 dBm +0.5/−1 (typical conducted)
- Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi (Cellular/PCS) gain; finger tighten only (maximum torque spec is 7 kgf/cm2)
- GPS: active GPS support
- Industry Standards & Certs: FCC, Verizon
AER1650LPE-AT – 4G LTE/HSPA+/EVDO for AT&T (non-WiFi)
- Technology: LTE, HSPA+, EVDO Rev A
- Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
- Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
- Frequency Bands:
- LTE Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
- HSPA+/UMTS (850/900/1900/2100 MHz, AWS)
- GSM/GPRS/EDGE (850/900/1800/1900 MHz)
- CDMA EVDO Rev A/1xRTT (800/1900 MHz)
- Power: LTE: 23 dBm ± 1; HSPA+: 23 dBm ± 1; EVDO: 24 dBm +0.5/−1 (typical conducted)
- Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi (Cellular/PCS) gain; finger tighten only (maximum torque spec is 7 kgf/cm2)
- GPS: active GPS support
- Industry Standards & Certs: PTCRB, FCC, IC, AT&T
AER1650LPE-SP – 4G LTE/HSPA+/EVDO for Sprint (non-WiFi)
- Technology: LTE, HSPA+, EVDO Rev A
- Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
- Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
- Frequency Bands:
- LTE Band 2 (1900 MHz), Band 4 – AWS (1700/2100 MHz), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
- HSPA+/UMTS (850/900/1900/2100 MHz, AWS)
- GSM/GPRS/EDGE (850/900/1800/1900 MHz)
- CDMA EVDO Rev A/1xRTT (800/1900 MHz)
- Power: LTE: 23 dBm ± 1; HSPA+: 23 dBm ± 1; EVDO: 24 dBm +0.5/−1 (typical conducted)
- Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi (Cellular/PCS) gain; finger tighten only (maximum torque spec is 7 kgf/cm2)
- GPS: active GPS support
- Industry Standards & Certs: FCC, Sprint
AER1600LPE-GN – 4G LTE/HSPA+/EVDO (generic – for use on T-Mobile and US Cellular in the U.S. and Rogers, Bell, & TELUS in Canada)
- Technology: LTE, HSPA+, EVDO Rev A
- Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
- Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
- Frequency Bands:
- LTE Band 2 (1900 MHz), Band 4 (AWS), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
- HSPA+/UMTS (850/900/1900/2100 MHz, AWS)
- GSM/GPRS/EDGE (850/900/1800/1900 MHz)
- CDMA EVDO Rev A/1xRTT (800/1900 MHz)
- Power: LTE: 23 dBm ± 1; HSPA+: 23 dBm ± 1; EVDO: 24 dBm +0.5/−1 (typical conducted)
- Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi (Cellular/PCS) gain; finger tighten only (maximum torque spec is 7 kgf/cm2)
- GPS: active GPS support
- Industry Standards & Certs: PTCRB, FCC, IC
AER1650LPE-GN – 4G LTE/HSPA+/EVDO (generic – for use on T-Mobile and US Cellular in the U.S. and Rogers, Bell, & TELUS in Canada) (non-WiFi)
- Technology: LTE, HSPA+, EVDO Rev A
- Downlink Rates: LTE 100 Mbps, HSPA+ 21.1 Mbps, EVDO 3.1 Mbps (theoretical)
- Uplink Rates: LTE 50 Mbps, HSPA+ 5.76 Mbps, EVDO 1.8 Mbps (theoretical)
- Frequency Bands:
- LTE Band 2 (1900 MHz), Band 4 (AWS), Band 5 (850 MHz), Band 13 (700 MHz), Band 17 (700 MHz), Band 25 (1900 MHz)
- HSPA+/UMTS (850/900/1900/2100 MHz, AWS)
- GSM/GPRS/EDGE (850/900/1800/1900 MHz)
- CDMA EVDO Rev A/1xRTT (800/1900 MHz)
- Power: LTE: 23 dBm ± 1; HSPA+: 23 dBm ± 1; EVDO: 24 dBm +0.5/−1 (typical conducted)
- Antennas: two SMA male (plug), 1 dBi (LTE), 2 dBi (Cellular/PCS) gain; finger tighten only (maximum torque spec is 7 kgf/cm2)
- GPS: active GPS support
- Industry Standards & Certs: PTCRB, FCC, IC
Below is a list of carrier-supplied modems compatible with the AER1600/AER1650.
AT&T
- USB
- Cradlepoint MC400LP6
- Cradlepoint MC300LP-AT
- Cradlepoint MC400LPE-AT
- Cradlepoint MC400LP4
- Sierra Wireless AirCard 340U [Beam]
Band 14 Public Safety LTE
- USB
- Cradlepoint MC400L2
Bell Mobility (CA)
- USB
- Cradlepoint MC400LPE-GN
- Cradlepoint MC400LP4
- Cradlepoint MC400LP6
- Novatel Wireless U679
POTS (Analog)
- USB
- Portsmith PSA1U1M
Rogers (CA)
- USB
- Cradlepoint MC400LPE-GN
- Cradlepoint MC400LP4
- Cradlepoint MC400LP6
- Sierra Wireless 330U [LTE Rocket Stick]
Sprint
- USB
- Cradlepoint MC400LP6
- Cradlepoint MC400LPE-SP
- Cradlepoint MC400LE2-SP
- Franklin Wireless U770 [Plug-in-Connect Tri-Mode USB]
- Franklin Wireless U600
- Franklin Wireless U772 [Franklin U772 Smart USB Modem]
- NETGEAR 341U
T-Mobile (USA)
- USB
- Cradlepoint MC400LP6
- Cradlepoint MC400LP4
- Cradlepoint MC400LPE-GN
- ZTE MF683 [Rocket 3.0]
Telstra/BigPond (AU)
- USB
- Sierra Wireless AirCard 320U
TELUS (CA)
- USB
- Cradlepoint MC400LPE-GN
- Cradlepoint MC400LP4
- Cradlepoint MC400LP6
- Huawei E3276
Verizon
- USB
- Cradlepoint MC400LP6
- Cradlepoint MC300LE-VZ
- Cradlepoint MC400LPE-VZ
- Cradlepoint MC400LP4
- Novatel Wireless Ovation MC551 [ 551L 4G LTE USB Modem]
- Novatel Wireless U620L [MiFi 4G LTE Global USB Modem U620L]
- Pantech UML295
Hardware Specifications:
The Cradlepoint AER1600 / AER1650 is available with three different
modem options:
- AER1600LPE / AER1650LPE include an embedded modem and a slot to add an MC400 modem
- AER1600LP3 / AER1650LP3 include a bundled MC400 modem and do not include an embedded modem
- AER1600 / AER1650 only include a slot for an MC400 modem and do not include an embedded modem
Software:
Cloud Networking for Branch Office, Retail, and More
Cradlepoint’s NetCloud platform includes an industryleading router operating system, an award-winning management platform optimized for cellular, and virtual private cloud networking. When combined with Cradlepoint routers, this integrated platform of flexible, extensible, and rapidly deployable applications enables an entirely new way to easily build, secure, control, and manage end-to-end private networks in the cloud.
NetCloud OS
Firewall, Advanced Routing-Optimized for LTE
NetCloud OS is the heart of our industry-leading LTE routers. Sustained commitment to new features and capabilities ensures your network is always up to date and secure.
NetCloud Manager
Quickly Deploy, Manage & Monitor Your Network
NetCloud Manager is a cloud management service that enables zero-touch deployment, remote management, alerting, and network analytics for all Cradlepoint routers.
NetCloud Engine
Software-Defined. Security-Driven. Cloud-Delivered.
NetCloud Engine leverages SoftwareDefined Networking (SDN) to instantly create secure Virtual Cloud Networks over more cost-effective wired and wireless broadband Internet services.
Security Applications
Enhance network security with best-in-class applications from Cradlepoint Technology Partners. Create, deploy, and manage network security applications at remote locations with the Cradlepoint NetCloud platform. Improve productivity, reduce costs, and enhance the security intelligence of your network.
Zscaler Internet Security
Configured in minutes, best-inclass Zscaler Internet Security protects your organization from web-based threats.
CP Secure Threat Management
A comprehensive intrusion prevention and detection system (IPS/IDS) for full defense-in-depth.
AER Platform Extensibility
Cradlepoint Extensibility enables customers and developers to build one-of-a-kind applications and vertical solutions by extending key elements of the Cradlepoint platform. By leveraging our hardware, firmware, and cloud services, developers can add differentiation and unique value to the solutions they offer.
Router SDK (Open Beta)
Build custom vertical applications securely running at the Edge, protected on device, and deployed through the cloud. Manage, deploy, and monitor customer Edge applications from the cloud across the entire fleet.
NetCloud API
Cradlepoint’s API provides the building blocks developers need to craft applications that access the data from a software platform.
Developer Community (Open Beta)
The Cradlepoint Developer Community enables members to leverage knowledge, share, and collaborate with other developers.
Compare:
Enterprise Branch Routers: AER Routers
Connect confidently at the network's edge with Cradlepoint AER, the cloud-managed Advanced Edge Router that supports both wired (Broadband/MPLS) and 4G LTE wireless.
| AER1600 / AER1650 | AER2100 | AER3100 / AER3150 | |
|---|---|---|---|
| Supports LTE-A | Yes | Yes | Yes |
| Cloud Management | Yes | Yes | Yes |
| NetCloud Engine | Yes | Yes | Yes |
| Zone-Based Firewall | Yes | Yes | Yes |
| Zscaler Internet Security Support | Yes | Yes | Yes |
| CP Secure Threat Management Support | Yes | Yes | Yes |
| Ports (LAN/WAN) | 4 / 1 (Switchable) | 4 / 1 (Switchable) | 12 / 1 (Switchable) |
| WiFi (Dual-band, dual concurrent a/b/g/n/ac) | No external Antennas 2x2 MIMO |
External antennas 3x3 MIMO |
External antennas 3x3 MIMO |
| Dual Modem Support | 1 embedded, 1 integrated* | 2 integrated | 2 integrated |
| WiFi as WAN | Yes | Yes | Yes |
| Rack Mount | No | Optional Kit | Yes |
| Housing | Industrial Plastic | Metal | Metal |
| Processor | 800MHz dual-core processor | 800MHz dual-core processor | 1.2GHz dual-core processor |
| Memory | 256MB DDR3 | 256MB DDR3 | 1GB DDR3 |
| Power-over-Ethernet | No | No | Yes (4 ports .af OR 2 port high power.at) |
*LP6-M versions of the AER1600/AER1650 come with a single LTE-A capable modem. Dual modem operation is not supported.
CradleCare Support:
From initial device deployment to long-term operations, Cradlepoint Global Support offers world-class resources and expertise to keep your network secure, simple and efficient. Cradlepoint offers multiple tiers of support to provide you exactly what you need.
With Cradlepoint Global Support and CradleCare, you can:
- Maximize revenue through always-on uptime and response times
- Save time with our web-based Connect Portal and Knowledge Base
- Collaborate with our multi-certified technical team
- Maintain PCI Compliance with up-to-date router and modem firmware
The following chart provides an overview of Cradlepoint's support and maintenance offerings:
| Included with every Cradlepoint purchase | CradleCare Basic | CradleCare |
|---|---|---|
Web-based Cradlepoint Connect Portal:
|
Included +
|
CradleCare Basic +
|
Extended Warranties
Extended Warranties can be purchased in subsequent years, and as a follow-on warranty at the conclusion of the standard warranty period. No gap in coverage is allowed: the new warranty must be in place before the existing warranty expires.
Standard One-Year Warranty (With Extended Warranty Option) Includes:
- Access to Cradlepoint Connect portal and Knowledge Base
- Hardware repair/replacement with 3-5 day shipping
- Software bug fixes
- An option to extend your warranty to 2, 3, or 5 years at the conclusion of the standard warranty period*
*Hardware warranties cannot be extended beyond 5 years from the date of purchase.
Documentation:
Download the Cradlepoint AER Series Datasheet (.PDF)
Download the Cradlepoint AER1600/AER1650 Spec Sheet (.PDF)
Pricing Note:
- Pricing and product availability subject to change without notice.
- Enterprise Cloud Manager is required for centralized management and to enable networking applications
- CradleCare Support is required for access to Cradlepoint Technical Assistance Center (TAC) on all products and services
Our Price: $142.00
Our Price: $426.00
Our Price: $710.00
Our Price: $212.00
Our Price: $636.00
Our Price: $1,060.00
Our Price: $142.00
Our Price: $426.00
Our Price: $710.00
